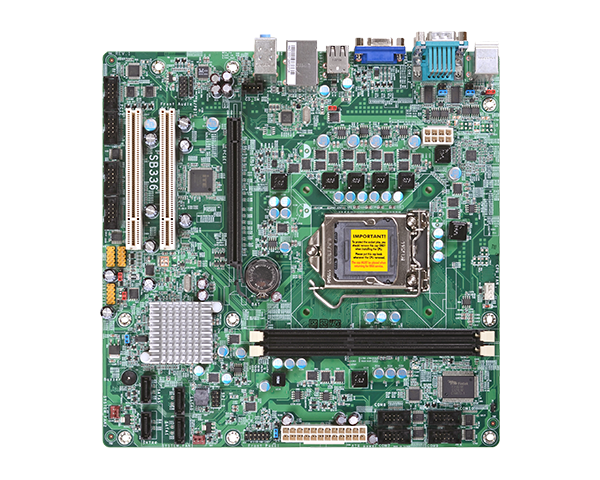

| SB336-Ni / MICRO-ATX | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 3rd/2nd Gen Intel® Core™ Multiple expansion: 1 PCIe x16, 2 PCI, 4 SATA 2.0 1 VGA Dual channel DDR3 1600MHz DIMM up to 16GB Rich I/O: 1 Intel GbE, 10 USB 2.0, 10 COM 7-Year CPU Life Cycle Support ? System Processor LGA 1155 socket for: - 3rd generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W - 2nd generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W Intel® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W Intel® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W Chipset Intel® H61 Chipset Memory Two 240-pin DIMM up to 16GB Dual Channel DDR3 1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature OpenGL 3.0, DirectX 11.1 Display 1 x VGA VGA: 32-bit resolution up to 2048x1536 @ 75Hz Expansion Interface 1 x PCIe x16 (Gen 3) 2 x PCI Audio Audio Codec Realtek ALC262 Ethernet Controller 1 x Realtek RTL8111DL PCIe (10/100/1000Mbps) Rear I/O Ethernet 1 x GbE (RJ-45) Serial 2 x RS-232 (RS-232 w/ power) (DB-9) USB 4 x USB 2.0 PS/2 2 x PS/2 Display 1 x VGA Audio 1 x Line-out 1 x Mic-in 1 x Line-in Internal I/O Serial 8 x RS-232 (2.0mm pitch) USB 6 x USB 2.0 Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 4 x SATA 2.0 Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption 103.85 W with i7-2600 at 3.40GHz and 2 x 1GB DDR3 DIMM RTC Battery CR2032 Coin Cell OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions microATX form factor 244mm (9.6") x 244mm (9.6") Packing List Packing List 1 SB336-Ni motherboard 2 USB port cables (with bracket) 2 Serial ATA data cables 2 COM port cables (with bracket) 1 I/O shield 1 DVD
