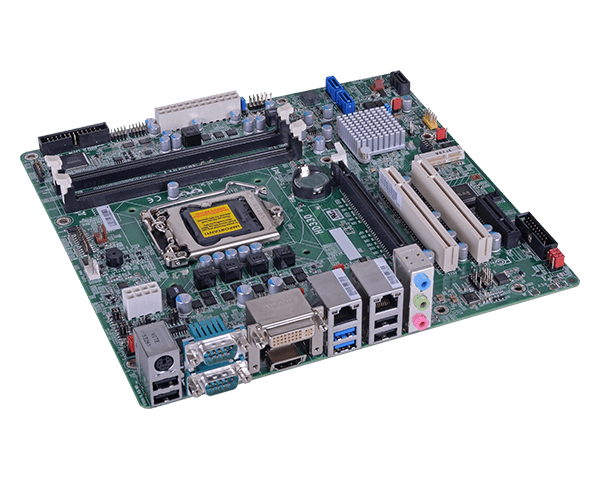

| HD330-H81 / MICRO-ATX | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 4th Gen Intel® Core™ Dual channel DDR3 1600MHz SODIMM up to 16GB 1 HDMI, 1 DVI-I Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 Mini PCIe, 2 PCI, 3 SATA, 1 LPC Rich I/O: 2 Intel GbE, 8 USB, 6 COM 7-Year CPU Life Cycle Support ? System Processor 4th Generation Intel® Core™ processors, LGA 1150 socket Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W Chipset Intel® H81 Chipset Memory Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature OpenGL 4.0, DirectX 11.1 Display 1 x HDMI 1 x DVI-I DVI-I: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2304 @ 24Hz Expansion Interface 1 x PCIe x16 (Gen 2) 1 x PCIe x4 (Gen 2) 2 x PCI 1 x Mini PCIe Audio Audio Codec Realtek ALC886 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I217LM (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 2 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 2 x USB 3.0 4 x USB 2.0 PS/2 1 x PS/2 Display 1 x HDMI 1 x DVI-I Audio 1 x Line-out 1 x Mic-in 1 x Line-in Internal I/O Serial 4 x RS-232 (2.0mm pitch) USB 2 x USB 2.0 Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA ? 2 x SATA 3.0 1 x SATA 2.0 DIO 1 x 8-bit DIO LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption 85.41W with i7-4770S at 3.10GHz and 2x 2GB DDR3 DIMM RTC Battery CR2032 Coin Cell OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) (limited function) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Note: Windows 10 will be available upon request. Please contact DFI for more information. Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 442,255 hrs @ 25°C; 248,638 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions microATX form factor 244mm (9.6") x 244mm (9.6") Packing List Packing List 1 HD330 motherboard 1 Serial ATA data cable 1 I/O shield 1 DVD
