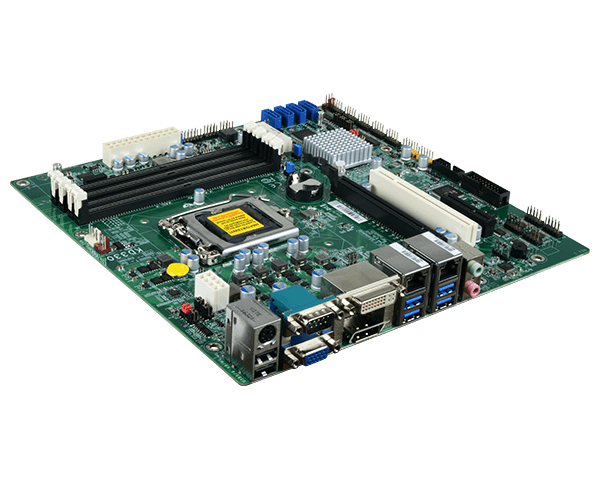

제품문의 02-3016-2464 http://www.wjubc.co.kr 6th/7th Gen Intel® Core™ with Intel® Q170 Multiple expansion: 1 PCIe x16, 1 PCIe x4, 1 PCI, 1 Mini PCIe Three display ports: VGA, DVI-D, DP++ Supports three independent displays 4 DDR4 DIMM up to 64GB Rich I/O: 2 Intel GbE, 6 COM(default), 4 COM(opt.), 6 USB 3.0, 6 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W Chipset Intel® Q170 Chipset Memory Four 288-pin DIMM up to 64GB Dual Channel DDR4 2133/2400MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + DVI-D + DP++ Expansion Interface 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 3) 1 x PCI 1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default) 1 x Half-size Mini PCIe (opt., MOQ required) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ Audio 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (default), 4 x RS-232 (opt., MOQ required) USB 4 x USB 3.0 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch) Audio 1 x S/PDIF SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM opt., MOQ required Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Ubuntu 16.04 Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Ubuntu 16.04. Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions microATX form factor 244mm (9.6") x 244mm (9.6") Height PCB: TBD Top Side: TBD, Bottom Side: TBD Standards and Certifications Certifications CE, FCC Packing List Packing List 1 KD330-Q170 motherboard 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shied A49-SD3300-001G 1 DVD 643-KD3301-000G
