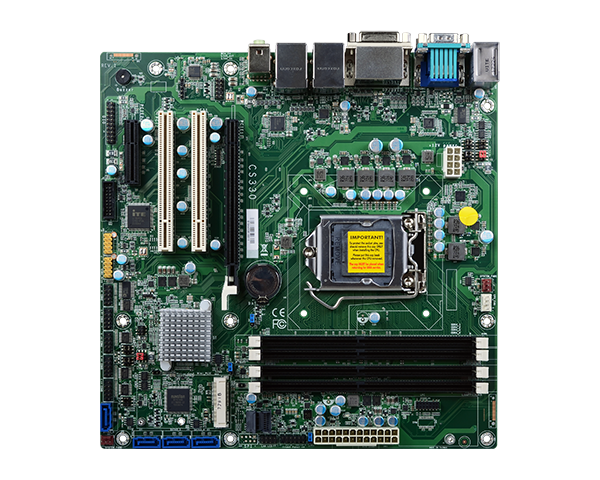

제품문의 02-3016-2464 http://www.wjubc.co.kr 8th Gen Intel® Core™ with Intel® Q370 4 DDR4 DIMM up to 64GB Three independent displays: VGA, DVI-D, DP++ Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini PCIe Rich I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 8th Generation Intel® Core™ Processors, LGA 1151 Socket Chipset Intel® Q370 Chipset Memory Four 288-pin DIMM up to 64GB Dual Channel DDR4 2400/2666 MHz BIOS AMI SPI 128Mbit Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz Triple Displays VGA + DVI-D + DP++ Expansion Interface 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 3) 2 x PCI 1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default) Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® I211AT (10/100/1000Mbps) 1 x Intel® I219LM with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 2 USB 3.1 Gen 2 2 USB 3.1 Gen 1 2 USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ Audio 1 x Line-out 1 x Mic-in 1 x Line-in (opt.) Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 USB 2 x USB 3.1 Gen 1 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch) Audio 1 x S/PDIF 1 x Front Audio Header SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 sec/min Security TPM Infi neon TPM2.0/1.2 (available upon request) Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows 10 IoT Enterprise Linux: Ubuntu 18.04 Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Height PCB: TBD Top Side: TBD, Bottom Side: TBD Dimensions (W x H x D) microATX form factor 244mm (9.6") x 244mm (9.6") Standards and Certifications Certifications UL, CE, FCC Packing List Packing List 1 CS330-Q370 motherboard 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shield A49-KD6000-000G 1 Screw of Mini PCIE card 531-510180-000G
