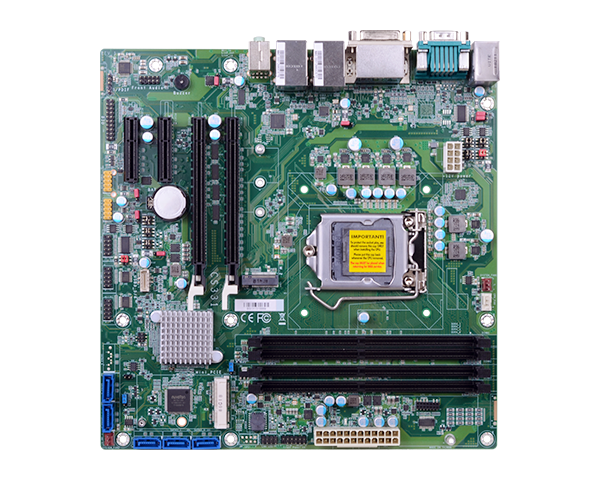

| CS331-Q370 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 8th Gen Intel® Core™ with Intel® Q370 4 DDR4 DIMM up to 64GB Three display ports: DVI-D, DP++, HDMI (HDMI 2.0a opt.) Supports triple independent displays Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 mini PCIe, 1 M.2 M key (support Optane Memory) Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 6 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 8th Generation Intel® CoreTM/Pentium®/Celeron® Processors, LGA 1151 Socket, TDP up to 95W Chipset Intel® Q370 Chipset Memory Four 288-pin DIMM up to 64GB Dual Channel DDR4 2400/2666 MHz (non ECC support) BIOS AMI SPI 128Mbit Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 1 x HDMI 1 x DVI-I (DVI-D signal) 1 x DP++ HDMI 1.2: resolution up to 1920x1200 @ 60Hz HDMI 2.0a: resolution up to 4096x2160 @ 60Hz (opt.)(MOQ required) DVI-D: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2106 @ 60Hz Triple Displays DVI-D + HDMI + DP++ Expansion Interface 2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals) 2 x PCIe x4 (Gen 3) 1 x mini PCIe (PCIe/mSATA/USB2.0) 1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe) Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® i219LM PCIe (10/100/1000Mbps) 1 x Intel® i211AT PCIe (10/100/1000Mbps) with iAMT 12.0 (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 2 x USB 3.1 Gen 2 2 x USB 3.1 Gen 1 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x HDMI 1 x DVI-I (DVI-D signal) 1 x DP++ Audio 1 x Line-out 1 x Line-in (colay, opt. by request, MOQ required) 1 x Mic-in Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 2 x RS-232 USB 2 x USB 3.1 Gen 2 4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A) (opt. by request, MOQ required) Audio 1 x S/PDIF, 1 x Front Audio Header SATA 5 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO LPC 1 x LPC (support LPC EXT-RS-232/485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 sec/min Security TPM Infi neon TPM 1.2/2.0 (Available Upon Request, MOQ required) Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows 10 IoT Enterprise 64-bit Linux: Ubuntu 18.04 Environment Temperature Operating: 0 to 60°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions microATX form factor 244mm (9.6") x 244mm (9.6") Height PCB: TBD Top Side: TBD Bottom Side: TBD Packing List Packing List 1 CS331-Q370 motherboard 1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G 1 Serial ATA data cable (W/LOCK, Length: 500mm): 332-553001-005G 1 I/O shield: TBD 1 DVD
