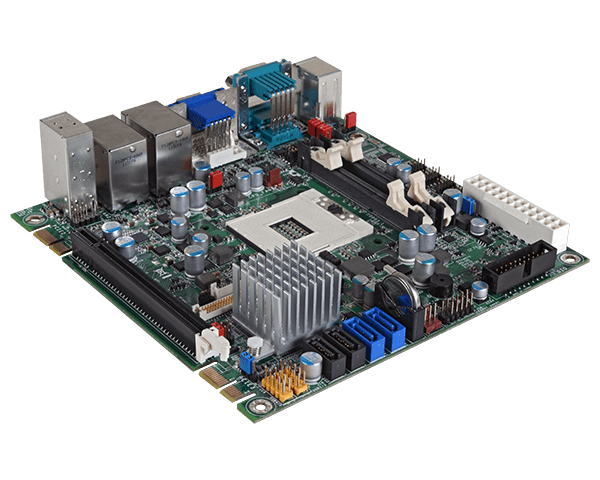

| HR100-CRM / Mini-ITX, 3rd/2nd Gen Intell® Core™, 2 DDR3, 1 PCIe x16, 1 DVI-I, 1 VGA, 1 LVDS | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Rich I/O: 2 Intel GbE, 6 COM, 8 USB 2.0 Expansion: 1 PCIe x16, 2 DFI Proprietary Extension bus 1 DVI-I (DVI-D signal), 1 VGA, 1 LVDS 2 DDR3 SODIMM up to 16GB 3rd/2nd Gen Intell® Core™ with Intell® QM67 7-Year CPU Life Cycle Support ? System Processor 3rd Generation Intel® Core™ processors (22nm process technology) (Rev. AG0 or later) Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W Intel® Core™ i5-3610ME (3M Cache, up to 3.3GHz); 35W Intel® Core™ i3-3120ME (3M Cache, 2.4GHz); 35W 2nd Generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W Intel® Core™ i3-2330E (3M Cache, 2.2GHz); 35W Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W Chipset Intel® QM67 Memory Two 204-pin DDR3 SODIMM up to 16GB Dual channel DDR3 1333/1600MHz (3rd generation processors) Dual channel DDR3 1066/1333MHz (2nd generation processors) BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature Supports 6 Graphics Execution Units (EUs) Intel® Clear Video Technology DirectX Video Acceleration (DXVA) support for accelerating video processing Display 1 x DVI-I (DVI-D signal) 1 x LVDS 1 x VGA DVI: resolution up to 1920x1200 @ 60Hz LVDS: Single Channel - 18/24-bit; Dual Channel: 36/48-bit, resolution up to 1920x1200 @ 60Hz VGA: resolution up 2048x1536 @ 75Hz Expansion Interface 1 x PCIe x16 (Gen 3/ Gen2) 2 x DFI Proprietary Extension Bus Audio Audio Codec Realtek ALC262 Ethernet Controller Intel® 82579LM with iAMT7.0 (10/100/1000Mbps) Realtek® RTL8111DL PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 2 x RS232/422/485 (DB-9) USB 4 x USB 2.0 PS/2 2 x PS/2 (mini-DIN-6) Display 1 x VGA (DB-15) 1 x DVI-I (DVI-D signal) Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 4 x RS232 USB 4 x USB 2.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA 2.0 (up to 3Gb/s) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 24-pin ATX power Consumption 64.68 W with i7-2710QE at 2.1GHz and 2x 4GB DDR3 SODIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature 0°C to 60°C Humidity Operating: 10% to 90% RH Storage: 10 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 HR100-CRM motherboard 2 Serial ATA data cables 2 Serial ATA power cables 2 USB cables 1 Bracket mounted with a COM port cable 1 I/O shield 1 DVD
