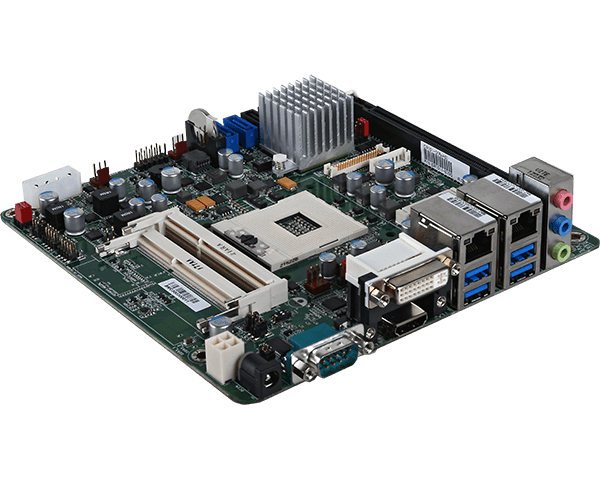

| CR101-D / Mini-ITX, 3rd/2nd Gen Intel® Core™, 2 DDR3/DDR3L, 1 PCIe x16, 1 Mini PCIe, 1 HDMI, 1 DVI-I | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Rich I/O: 2 Intel GbE, 2 COM, 4 USB 3.0, 4 USB 2.0 Expansion: 1 PCIe x16, 1 Mini PCIe 2 Independent Displays: 1 HDMI, 1 DVI-I, 1 LVDS 2 DDR3/DDR3L SODIMM up to 16GB 3rd/2nd Gen Intel® Core™ with Intel® HM76 7-Year CPU Life Cycle Support ? System Processor 3rd Generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W 2nd Generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W Chipset Intel® HM76 Memory Two 204-pin SODIMM up to 16GB Dual channel DDR3 (3rd generation processors) - 1066/1333/1600MHz Dual channel DDR3 (2nd generation processors) - 1066/1333MHz (i5/i3/Celeron) - 1600MHz (i7) Dual channel DDR3L - 1066/1333MHz when operating at 1.35V - 1066/1333/1600MHz when operating at 1.5V BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics 4000 Feature Intel® Clear Video Technology DirectX Video Acceleration (DXVA) for accelerating video processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 3.0 Display 1 x HDMI 1 x DVI-I 1 x LVDS HDMI and DVI: resolution up to 1920x1200 @ 60Hz VGA: resolution up to 2048x1536 @ 75Hz, 32-bit LVDS: Single Channel - 18/24-bit; Dual Channel: 36/48-bit; resolution up to 2048x1536 @ 60Hz Expansion Interface 1 x PCIe x16 (Gen 3/ Gen2) 1 x Mini PCIe Audio Audio Codec Realtek® ALC886 Ethernet Controller 2 Realtek® RTL8111DL PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 1 x RS232/422/485 (RS232 and/or Power) (DB-9) USB 4 x USB 3.0 Display 1 x DVI-I 1 x HDMI Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS232/422/485 USB 4 x USB 2.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA 2.0 (up to 3Gb/s) LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type ATX Connector 1 x 4-pin peripheral power 1 x 4-pin 12V power Consumption 61.71 W with i7-3610QE at 2.3GHz and 2x 4GB DDR3 SODIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity Operating: 10% to 90% RH Storage: 10 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 CR101-D motherboard 1 Serial ATA data cable 1 Serial ATA power cable 1 I/O shield 1 DVD
