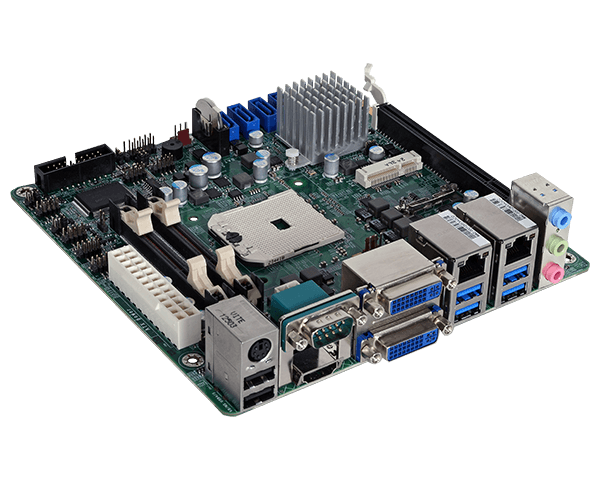

| CM100-C / Mini-ITX, AMD® Embedded R-Series, 2 DDR3, 1 PCIe x16, 1 Mini PCIe, 1 HDMI, 2 DVI-I | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 6 USB 2.0 Expansion: 1 PCIe x16, 1 Mini PCIe, 2 DFI Proprietary Extension Bus 3 independent displays: 1 HDMI + 2 DVI-I (DVI-D signal) 2 DDR3 SODIMM up to 16GB AMD® Embedded R-Series with AMD® A70M 5-Year CPU Life Cycle Support ? System Processor AMD® Embedded R-Series APUs : R-464L Quad-core 2.3GHz, 35W : R-460H Quad-core 1.9GHz, 35W : R-272F Dual-core 2.7GHz, 35W : R-268D Dual-core 2.5GHz, 35W PGA (FS1r2) socket Chipset AMD® A70M Memory Two 240-pin DDR3 SODIMM up to 16GB Dual channel DDR3 (1.5V), LVDDR3 (1.35V), ULVDDR3 (1.25V) up to 1600MHz BIOS AMI SPI 32Mbit Graphics Controller AMD Radeon™ Dual Graphics technology delivers enhanced 3D graphics rendering performance Feature ? DirectX 11, Hardware H.264, VC-1, MPEG-2, DivX at 1080p@60fps Display 1 x HDMI 2 x DVI (DVI-D signal) HDMI, DVI: resolution up to 1920x1200 @ 60Hz Expansion Interface 1 x PCIe x16 1 x Mini PCIe 2 x DFI Proprietary Extension Bus Audio Audio Codec Realtek ALC886 Ethernet Controller 2 x Intel® WG82574L PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 1 x RS232 (RS232 and/or Power) (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x HDMI 2 x DVI-I (DVI-D signal) Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 2 x RS232/422/485 2 x RS232 1 x RS232 (RS232 and/or Power) USB 4 USB 2.0 Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 4 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 24-pin ATX power 4-pin 12V power OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -40°C to 85°C Humidity Operating: 10% to 90% RH Storage: 10 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 CM100-C motherboard 1 Serial ATA data cable 1 I/O shield 1 DVD
