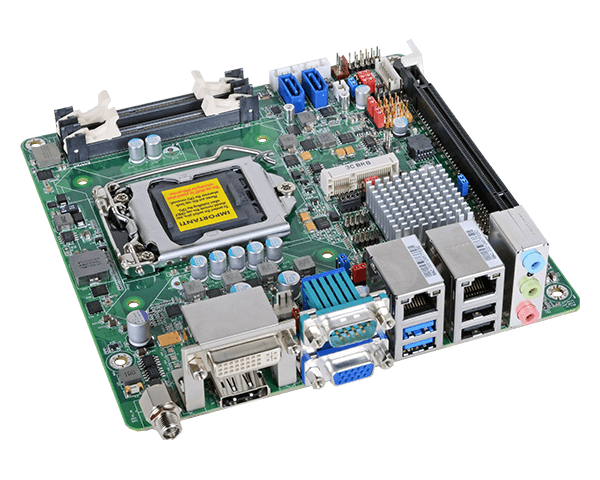

| HD171/HD173-H81Mini-ITX, 4th Gen Intel® Core™, 2 DDR3, 1 PCIe x16, 1 Mini PCIe, 1 DP, 1 DVI-I, 1 VGA | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.0, 7 USB 2.0 Expansion: 1 PCIe x16, 1 Mini PCIe 1 DP, 1 DVI-I (DVI-D signal), 1 VGA 2 DDR3 SODIMM up to 16GB 4th Gen Intel® Core™ with Intel® H81 7-Year CPU Life Cycle Support ? System Processor 4th Generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-4770TE (8M Cache, up to 3.3 GHz); 45W Intel® Core™ i5-4590T (6M Cache, up to 3.0 GHz); 35W Intel® Core™ i5-4570TE (4M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-4350T (4M Cache, 3.1 GHz); 35W Intel® Core™ i3-4340TE (4M Cache, 2.6 GHz); 35W Intel® Core™ i3-4330TE (4M Cache, 2.4 GHz); 35W Intel® Pentium® G3320TE (3M Cache, 2.3 GHz); 35W Intel® Celeron® G1820TE (2M Cache, 2.2 GHz); 35W Chipset Intel® H81 Memory Two 204-pin DDR3 SODIMM up to 16GB Dual channel DDR3 1333/1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature Supports 6 Graphics Execution Units (EUs) Intel® Clear Video Technology DirectX Video Acceleration (DXVA) support for accelerating video processing Display 1 x DP 1 x DVI-I (DVI-D signal) 1 x VGA Supports dual independent displays DP: supports DP++, resolution up to 3840x2160 @ 60Hz DVI-D, VGA: resolution up to 1920x1200 @ 60Hz Expansion Interface 1 x PCIe x16 (Gen 3) 1 x Mini PCIe Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I217 (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 1 x RS232 (DB-9) USB 2 x USB 2.0 2 x USB 3.0 Display 1 x VGA 1 x DP 1 x DVI-I (DVI-D signal) Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS422/485 (2.0mm pitch) 2 x RS232 (2.0mm pitch) USB 5 x USB 2.0 Audio 1 x Line-out 1 x Mic-in SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (HD171) Wide Range 19~24V (HD173) Connector DC-in Jack Vertical Type Connector (4-pin) (available upon request) Consumption HD171-H81N: 35.28W with i7-4770TE at 2.3GHz and 2x 8GB DDR3 SODIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity Operating: 10% to 90% RH Storage: 10 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") ? ? ? Packing List Packing List 1 HD171/HD173 motherboard 1 Serial ATA data with power cable: A81-002013-000G 1 I/O shield: A49-HD1710-010G 1 DVD ?
