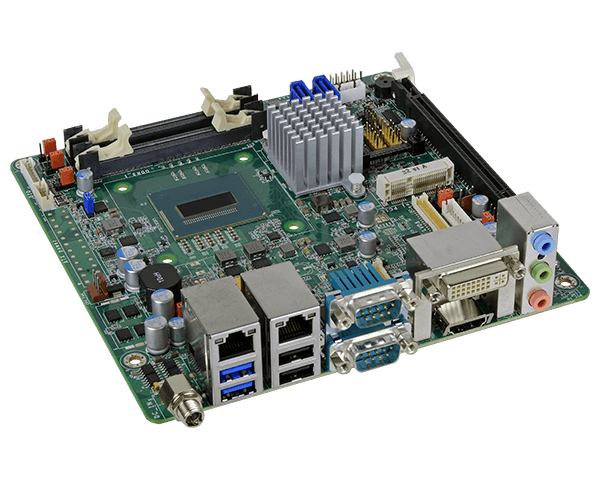

| HM101/HM103-QM87Mini-ITX, 4th Gen Intel® , 2 DDR3L, 1 PCIe x16, 1 Mini PCIe, 1 HDMI, 1 DVI-I, 1 LVDS | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 2 DDR3L SODIMM up to 16GB 1 HDMI, 1 DVI-I, 1 LVDS, 1 DP Expansion: 1 PCIe x16, 1 Mini PCIe Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.0, 6 USB 2.0 4th Gen Intel® Core™ with Intel® QM87 7-Year CPU Life Cycle Support ? System Processor Intel® Core™ i7-4700EQ, 6M Cache, 2.4GHz (3.4GHz), 47W Intel® Core™ i5-4400E, 3M Cache, 2.7GHz (3.3GHz), 37W Intel® Core™ i5-4402E, 3M Cache, 1.6GHz (2.7GHz), 25W Intel® Core™ i3-4100E, 3M Cache, 2.4GHz, 37W Intel® Core™ i3-4102E, 3M Cache, 1.6GHz, 25W Chipset Intel® QM87 Express Chipset Memory Two 204-pin DDR3L SODIMM up to 16GB Dual channel DDR3L 1333/1600MHz BIOS AMI BIOS 64Mbit SPI BIOS Graphics Controller Intel® HD Graphics 4600 Feature Intel® Clear Video Technology DirectX Video Acceleration (DXVA) support for accelerating video processing DirectX 11.1, OpenGL 4.0, OpenCL 1.2 Display 1 x HDMI 1 x DVI-I 1 x LVDS 1 x DP HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz DP: resolution up to 3840x2160 @ 60Hz Expansion Interface 1 x PCIe x16 (Gen 3) 1 x Mini PCIe Audio Audio Codec Realtek ALC886 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I217LM with iAMT9.0 (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 2 x RS232 (DB-9) USB 2 x USB 2.0 2 x USB 3.0 Display 1 x HDMI 1 x DVI-I Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O USB 4 x USB 2.0 Display 1 x DP Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (HM101) Wide Range 19~24V (HM103) Connector DC-in Jack Vertical Type Connector (4-pin) (available upon request) Consumption HM103-QM87D-4700EQ: 52.02W with i7-4700EQ at 2.4GHz and 2x 2GB DDR3L SODIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity Operating: 5% to 90% RH Storage: 5 to 90% RH ? Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7")
