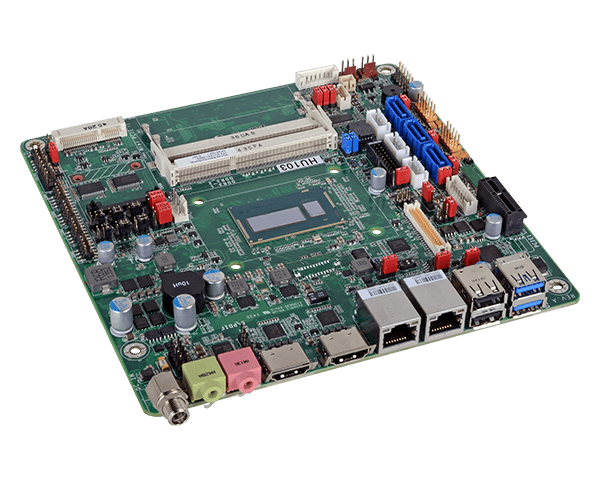

| HU101/HU103 / Mini-ITX, 4th Gen Intel® Core™, 2 DDR3L, 1 PCIe x1, 1 Mini PCIe, 2 HDMI, 1 LVDS/eDP | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 2 DDR3L SODIMM up to 16GB 2 HDMI, 1 LVDS or 1 eDP Expansion: 1 PCIe x1, 1 Mini PCIe Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 6 USB 2.0 4th Gen Intel® Core™ Mini-ITX 7-Year CPU Life Cycle Support ? System Processor Intel® Core™ i7-4650U, 4M Cache, 1.7GHz (3.3GHz), 15W Intel® Core™ i5-4300U, 3M Cache, 1.9GHz (2.9GHz), 15W Intel® Core™ i3-4010U, 3M Cache, 1.7GHz, 15W Intel® Celeron® 2980U, 2M Cache, 1.6GHz, 15W Memory Two 204-pin SODIMM up to 16GB Dual channel DDR3L 1333/1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics GT series Feature Intel® Clear Video Technology Intel® Advanced Vector Extensions 2.0 (Intel® AVX 2.0) Instructions DirectX 11.1, OpenGL 4.0, OpenCL 1.2 Display 2 x HDMI 1 x LVDS LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz ? Expansion Interface 1 x PCIe x1 1 x Mini PCIe Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I218 with iAMT9.5 (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 2 x USB 2.0 2 x USB 3.0 Display 2 x HDMI Audio 1 x Line-out 1 x Mic-in Internal I/O Serial 2 x RS232/422/485 (RS232 and/or Power) (2.0mm pitch) 2 x RS232 (2.0mm pitch) USB 4 x USB 2.0 2 x USB 3.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 3 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (HU101) Wide Range 19~24V (HU103) Connector DC-in Jack Vertical Type Connector (4-pin) (available upon request) Consumption HU101-N4650U: 35.42W with i7-4650U at 1.7GHz and 2x 2GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity Operating: 5% to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 HU101/HU103 motherboard 1 Serial ATA data with power cable: A81-002013-000G 1 DVD 1 Heat sink with fan: A71-114001-000G
