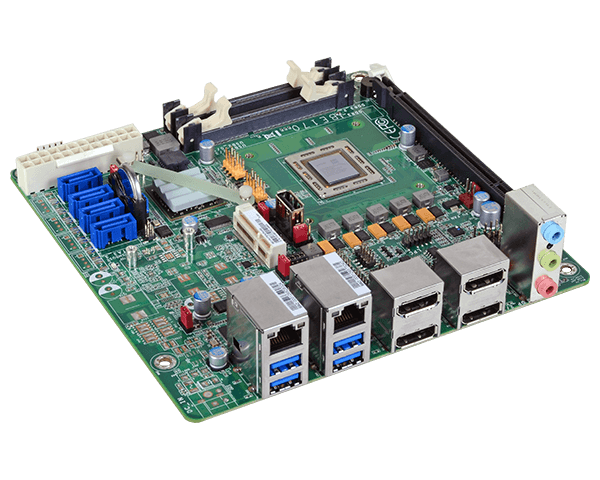

제품문의 02-3016-2464 http://www.wjubc.co.kr AMD® Embedded R-Series Mini-ITX Expansion: 1 PCIe x16, 1 Mini PCIe 2 DDR3/DDR3L SODIMM up to 16GB 4 DP (supports DP++) Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 5 USB 2.0 5-Year CPU Life Cycle Support ? System Processor AMD® RX-427BB, Quad Core, 4M Cache, 2.7GHz (3.6GHz), 35W AMD® RX-225FB, Dual Core, 1M Cache, 2.2GHz (3.0GHz), 17W Chipset AMD® A77E Memory Two 204-pin SODIMM up to 16GB Dual channel DDR3/DDR3L 1600/1866/2133MHz BIOS AMI SPI 64Mbit Graphics Controller AMD Radeon™ HD 9000 Series Graphics Feature DirectX 11.1, OCL 1.2, OGL 4.1/4.1+, H.264, VC-1, MPEG-4, MPEG-2 and WMV Display 4 x DP (supports DP++) DP: resolution up to 3840x2160 @ 30Hz Expansion Interface 1 x PCIe x16 (Gen 3) - 1 x16 signal (Gen 3) (Quad Core APU) - 1 x8 signal (Gen 3) (Dual Core APU) 1 x Mini PCIe Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Realtek RTL8111EP (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 4 x USB 3.0 Display 4 x DP Audio 1x Mic-in 1 x Line-in 1 x Line-out Internal I/O Serial 1 x RS232/422/485 (2.0mm pitch) 3 x RS232 (2.0mm pitch) USB 5 x USB 2.0 Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 4 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 24-pin ATX power Consumption BE170-77EN-427B: 38.06W with RX-427BB at 2.7GHz and 2x 4GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Embedded Pro x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity Operating: 10% to 95% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 BE170 motherboard 1 Serial ATA data cable: 332-553001-005G 1 I/O shield: A49-BE1700-000G 1 DVD 1 Cooler: A71-108004-000G
