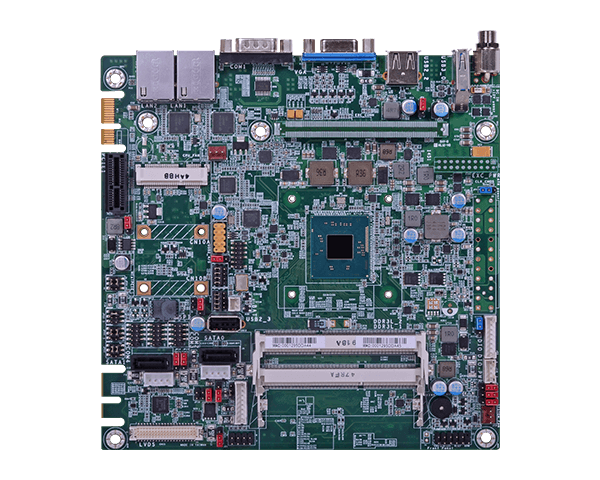

| BT161 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Atom™ E3800 Mini-ITX Expansion: 1 PCIe x1, 1 Mini PCIe 2 DDR3L SODIMM up to 8GB 1 VGA, 1 LVDS Rich I/O: 2 Intel GbE, 4 COM, 1 USB 3.0, 4 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W Intel® Celeron® J1900, Quad Core, 2M Cache, up to 2.42GHz, 10W Memory Two 204-pin DDR3L up to 8GB Dual channel DDR3L 1333/1066MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS) Display 1 x VGA 1 x LVDS VGA: resolution up to 2560x1600 @ 60Hz LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz ? Expansion Interface 1 x PCIe x1 1 x Mini PCIe 1 x DFI Proprietary Extension Bus for PCIe/PCI expansion Ethernet Controller 2 x Intel® I210 PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 1 x RS232 (DB-9) USB 1 x USB 2.0 1 x USB 3.0 Display 1 x VGA (DB-15) Internal I/O Serial 1 x RS232/422/485 (RS232 and/or power) (2.0mm pitch) 2 x RS232 (2.0mm pitch) USB 3 x USB 2.0 Display 1 x LVDS SATA 2 x SATA 2.0 (up to 3Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC Connector DC-in Jack Vertical Type Connector (4-pin) (available upon request) Consumption BT161-BN-E45: 16.32W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -40°C to 85°C Humidity Operating: 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 BT161 motherboard 1 Serial ATA data with power cable: A81-002013-000G 1 DVD 1 Heat sink: A71-010026-000G
