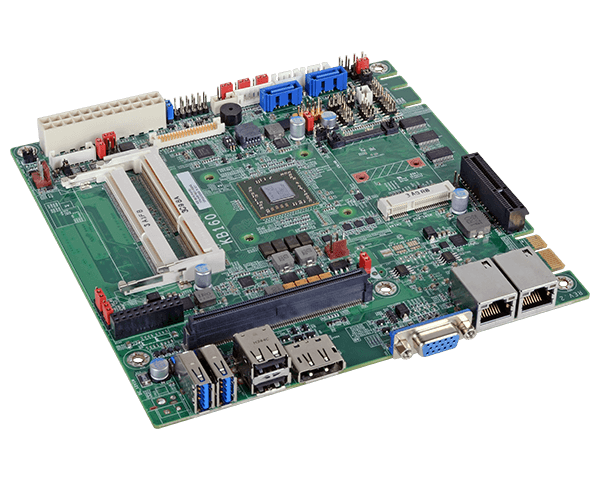

| KB160 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr AMD® Embedded G-Series SoC Mini-ITX 2 DDR3/DDR3L SODIMM up to 8GB 1 VGA, 1 LVDS, 1 DP Expansion: 1 PCIe x4, 1 Mini PCIe, 1 DFI Proprietary Extension Bus, 1 DFI EXC interface Rich I/O: 2 Intel GbE, 4 COM, 2 USB 3.0, 4 USB 2.0 10-Year CPU Life Cycle Support ? System Processor AMD® GX-420CA, Quad Core, 2M Cache, 2.0GHz, 25W AMD® GX-415GA, Quad Core, 2M Cache, 1.5GHz, 15W AMD® GX-217GA, Dual Core, 1M Cache, 1.65GHz, 15W AMD® GX-210HA, Dual Core, 1M Cache, 1.0GHz, 9W Memory Two 204-pin SODIMM up to 8GB Single channel DDR3/DDR3L 1066/1333/1600MHz BIOS AMI SPI 32Mbit Graphics Controller AMD® HD 8000 Series Graphics Feature DirectX 11.1, H.264, MPEG-2, MPEG-4 AVC, VC-1 and WMV Display 1 x VGA 1 x LVDS 1 x DP VGA: resolution up to 2560x1600 @ 60Hz, 24-bit LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz DP: supports DP++, resolution up to 4096x2160 @ 30Hz ? Expansion Interface 1 x PCIe x4 1 x Mini PCIe 1 x DFI Proprietary Extension Bus for PCIe/PCI expansion 1 x DFI EXC interface for I/O expansion Ethernet Controller 2 x Intel® I210 PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 2 x USB 2.0 2 x USB 3.0 Display 1 x VGA (DB-15) 1 x DP Internal I/O Serial 1 x RS485 (2.0mm pitch) 3 x RS232 (2.0mm pitch) USB 2 x USB 2.0 Display 1 x LVDS SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 24-pin ATX power OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity Operating: 5% to 95% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 KB160 motherboard 1 Serial ATA data cable 1 DVD
