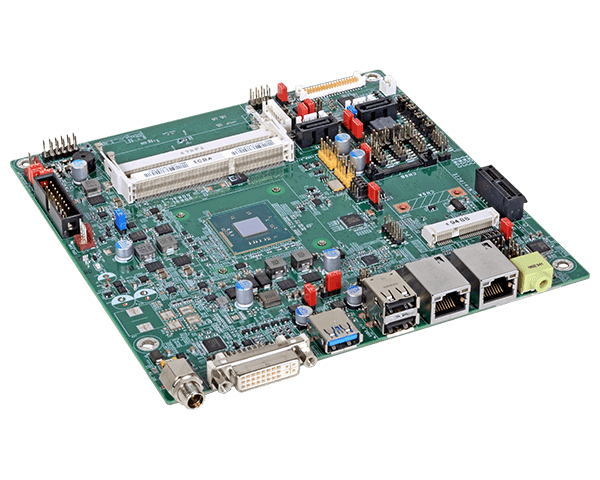

제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Atom™ E3800 Mini-ITX 2 DDR3L SODIMM up to 8GB 1 DVI-I, 1 LVDS Expansion: 1 PCIe x4, 1 Mini PCIe, 1 SIM (Optional) Rich I/O: 2 Intel GbE, 4 COM, 1 USB 3.0, 6 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel® Atom™ Processor E3815, Single Core, 0.5M Cache, 1.46GHz, 5W Intel® Atom™ Processor E3825, Dual Core, 1M Cache, 1.33GHz, 6W Intel® Atom™ Processor E3826, Dual Core, 1M Cache, 1.46GHz, 7W Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Celeron® Processor J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Memory Two 204-pin DDR3L SODIMM up to 8GB Dual channel DDR3L 1333/1066MHz One 204-pin DDR3L SODIMM up to 4GB Single channel DDR3L 1066MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS) Display 1 x DVI-I 1 x LVDS DVI-I: 24-bit, resolution up to 1920x1080 @ 60Hz LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz Expansion Interface 1 x PCIe x1 1 x Mini PCIe 1 x SIM card Audio Audio Codec Realtek ALC888 Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 2 x USB 2.0 1 x USB 3.0 Display 1 x DVI-I Audio 1 x Line-out Internal I/O Serial 1 x RS232/422/485 (RS232 and/or Power) (2.0mm pitch) 3 x RS232 (2.0mm pitch) USB 4 x USB 2.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 2 x SATA 2.0 (up to 3Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type DC-in Jack Vertical Type Connector (4-pin) (available upon request) Connector Single 12V +/-10% DC (BT101) Wide Range 19~24V (BT103) Consumption BT101-BN-E45: 13.20W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM BT103-BN-E45: 13.68W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Environment Temperature Operating : 0°C to 60°C - Atom, Celeron (Fanless) : -20°C to 70°C - Atom (Fanless with air flow) : -40°C to 85°C - Atom (Fanless with air flow) Storage: -40°C to 85°C Humidity Operating: 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Standards and Certifications Certifications CE, FCC Class B, RoHS, UL
