| BT100 | 산업용보드 > EATX | 0 |
|---|---|---|
|

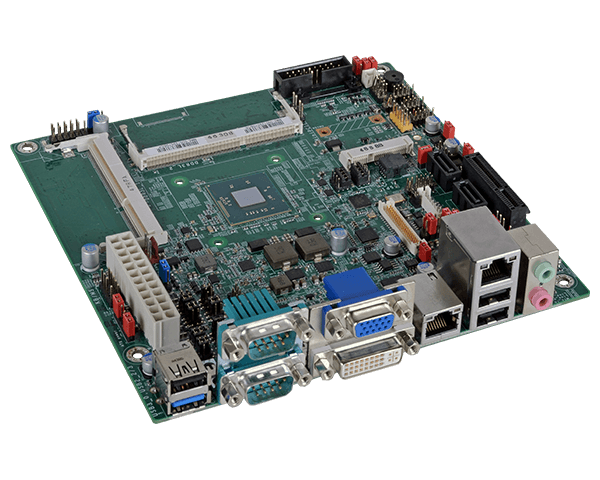

제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Atom™ E3800 Mini-ITX 2 DDR3L SODIMM up to 8GB 1 DVI-I(DVI-D signal), VGA, LVDS Expansion: 1 PCIe x4 (x1 signal), 1 Mini PCIe Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 6 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Atom™ Processor E3815, Single Core, 0.5M Cache, 1.46 GHz, 5W Intel® Celeron® Processor J1900, Quad Core, 2M Cache, up to 2.41 GHz, 10W Memory Two 204-pin DDR3L SODIMM up to 8GB Dual channel DDR3L 1333MHz One 204-pin DDR3L SODIMM up to 4GB Single channel DDR3L 1066MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS) OpenGL 4.0, Direct X 11, OpenCL 1.2, Display 1 x DVI-D 1 x VGA 1 x LVDS DVI-D: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz Expansion Interface 1 x PCIe x4 (x1 signal) 1 x Mini PCIe Audio Audio Codec Realtek ALC888 Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS232/422/485 (RS232 and/or power) (DB-9) 1 x RS232 (DB-9) USB 3 x USB 2.0 1 x USB 3.0 Display 1 x DVI-I (DVI-D signal) 1 x VGA Audio 1 x Mic-in 1 x Line-out Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch) 3 x RS-232 (2.0mm pitch) USB 3 x USB 2.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in 1 x S/PDIF SATA 2 x SATA 2.0 (up to 3Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 24-pin ATX Consumption BT100-TC-E45: 12.18W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Environment Temperature Operating: 0°C to 60°C / -20°C to 70°C / -40°C to 85°C Storage: -40°C to 85°C Humidity Operating: 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions Mini-ITX form factor 170mm (6.7") x 170mm (6.7") Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 BT100 motherboard 1 Serial ATA data cable: 332-553001-005G 1 I/O shield: A49-BT1000-000G 1 DVD 1 Heat sink: A71-010026-000G
첨부파일 :
|
||
