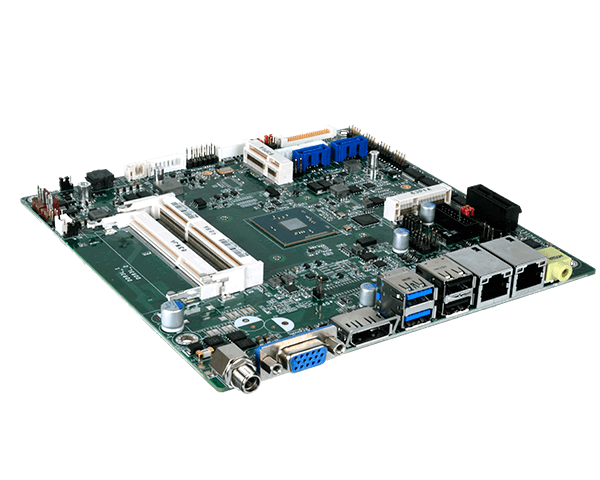

제품문의 02-3016-2464 http://www.wjubc.co.kr Three independent displays: DP++*/eDP + VGA + LVDS Multiple expansion: 1 PCIe x1, 1 Mini PCIe, 1 mSATA, 1 SIM (Opt.), 1 LPC Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 5 USB 2.0 2 DDR3L 1600MHz SODIMM up to 8GB Intel® Pentium®/Celeron® N3000 Thin Mini-ITX 15-Year CPU Life Cycle Support ? System Processor Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170 Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz BIOS Insyde SPI 64Mbit Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x VGA 1 x LVDS 1 x DP++/eDP (eDP available upon request) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz eDP: resolution up to 2560x1440 @ 60Hz Triple Displays VGA + LVDS + DP++ VGA + LVDS + eDP (available upon request) Expansion Interface 1 x PCIe x1 (Gen 2) 1 x SIM (available upon request) 1 x Full-size Mini PCIe (PCIe/USB) 1 x Full-size mSATA (USB/SATA) Audio Audio Codec Realtek ALC888 5.1-channe Ethernet Controller 2 x Intel® I211AT PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) USB 2 x USB 3.0 2 x USB 2.0 Display 1 x VGA 1 x DP++ Audio 1 x Line-out Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch) 3 x RS-232 (2.0mm pitch) USB 2 x USB 3.0 (2.0mm pitch) 2 x USB 2.0 (2.0mm pitch) 1 x Vertical USB 2.0 (type A) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel (available upon request) Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) (SATA port 1 multiplexed with mSATA) 2 x SATA Power DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (BW171) Wide Range 15~36V (BW173) Connector DC-in Jack Right Angle Connector (4-pin) (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption BW171 Typical: N3710:12V @ 0.436A (5.23Watt) Max.: N3710:12V @ 0.658A (7.90Watt) BW173 Typical: N3710:19V @ 0.186A (3.53Watt) Max.: N3710:19V @ 0.398A (7.56Watt) RTC Battery Lithium 3V (210mAH) OS Support OS Support Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 32/64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF BW171 : 357,014 hrs @ 25°C; 209,779 hrs @ 45°C ; 132,472 hrs @ 60°C BW173 : 353,593 hrs @ 25°C; 207,418 hrs @ 45°C ; 130,956 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: TBD Bottom Side: TBD
