| SU171/SU173 | 산업용보드 > EATX | 0 |
|---|---|---|
|

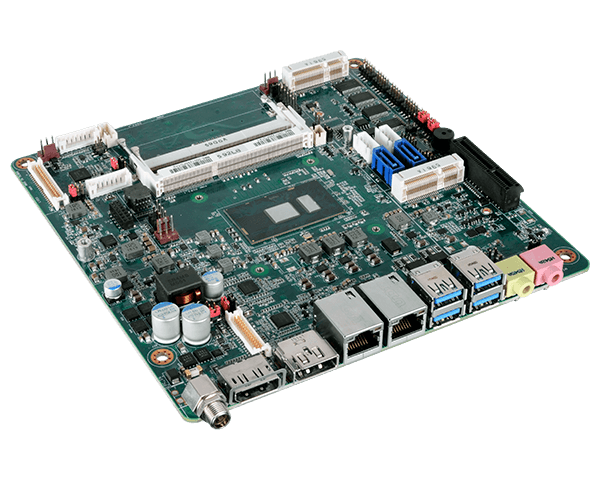

제품문의 02-3016-2464 http://www.wjubc.co.kr 6th Gen Intel® Core™ Thin Mini-ITX Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 4 USB 2.0 Multiple expansion: 1 PCIe x4, 1 Mini PCIe, 1 LPC Three independent displays: LVDS*/eDP + HDMI*/DP + DP++ 2 DDR3L 1600MHz SODIMM up to 16GB 15-Year CPU Life Cycle Support ? System Processor 6th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x LVDS/eDP (eDP available upon request) 1 x HDMI/DP (DP available upon request) 1 x DP++ LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz Triple Displays LVDS + HDMI + DP++ LVDS + DP + DP++ (available upon request) eDP + HDMI + DP++ (available upon request) eDP + DP + DP ++ (available upon request) Expansion Interface 1 x PCIe x4 (Gen 3) 1 x SIM (available upon request) 1 x Full-size Mini PCIe (PCIe/USB/SATA) 1 x Full-size Mini PCIe (PCIe/USB) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.0 Display 1 x HDMI/DP (DP available upon request) 1 x DP++ Audio 1 x Line-out 1 x Mic-in Internal I/O Serial 2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch) 2 x RS-232 (2.0mm pitch) USB 4 x USB 2.0 (2.0mm pitch) or 2 x USB 2.0 (2.0mm pitch) + 1 x Vertical USB 2.0 (type A) (available upon request) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel Connector (available upon request) Audio 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA Power RAID 0/1/5 DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (SU171) Wide Range 15~36V (SU173) Connector DC-in Jack Right Angle Connector (4-pin) (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption SU171 Typical: 6600U:12V @ 0.98A (11.76Watt); 6300U:12V @ 0.95A (11.40Watt) Max: 6600U:12V @ 1.62A (19.44Watt); 6300U:12V @ 1.58A (18.96Watt) SU173 Typical: 6600U:19V @ 0.48A (9.12Watt); 6300U:19V @ 0.43A (8.170Watt) Max: 6600U:19V @ 1.05A (19.95Watt); 6300U:19V @ 0.90A (17.10Watt) RTC Battery Lithium 3V (210mAH) OS Support OS Support Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C / -20 to 70°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF SU171 : 357,691 hrs @ 25°C; 206,450 hrs @ 45°C ; 130,229 hrs @ 60°C SU173 : 347,511 hrs @ 25°C; 200,230 hrs @ 45°C ; 126,434 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 16.5mm Bottom Side: 3.5mm Packing List Packing List 1 SU171/SU173 motherboard 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G 1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G 1 DVD 1 Heat sink (Height: 25mm) A71-010033-000G
