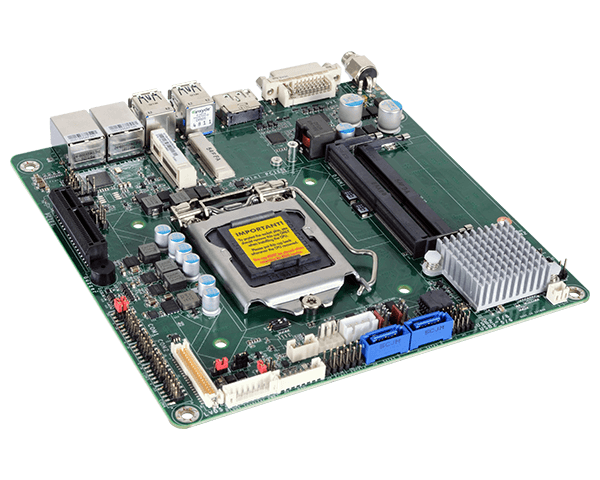

| SD101/SD103-H110 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 7/6th Gen Intel® Core™ with Intel® H110 2 DDR4 SODIMM up to 32GB Three display ports support two independent displays: LVDS + DVI-I + HDMI*/DP (DP available upon request) Multiple expansion: 1 PCIe x4, 1 Mini PCIe, 1 mSATA Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 4 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W 6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W Chipset Intel® H110 Chipset Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 1 x LVDS 1 x DVI-I (DVI-D signal) 1 x HDMI/DP (DP available upon request) LVDS: dual channel, resolution up to 1920x1200 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz DP: resolution up to 4096x2304 @ 60Hz Dual Displays LVDS + DVI-I (DVI-D signal) LVDS + HDMI LVDS + DP (DP available upon request) DVI-I (DVI-D signal) + HDMI DVI-I (DVI-D signal) + DP (DP available upon request) Expansion Interface 1 x PCIe x4 (Gen 2) 1 x Full-size mSATA (USB/SATA) 1 x Half-size Mini PCIe (USB/PCIe) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.0 Display 1 x DVI-I (DVI-D signal) 1 x HDMI/DP (DP available upon request) Internal I/O Serial 3 x RS-232 (2.00mm pitch) 1 x RS-232/422/485 (RS-232 w/ power) (2.00mm pitch) USB 4 x USB 2.0 (2.00mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) (available upon request) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type Single 12V +/-10% DC (SD101) Wide Range 15~36V (SD103) Connector DC-in Jack Right Angle Connector (4-pin) (available upon request) Vertical Type Connector (4-pin) (available upon request) RTC Battery CR2032 Coin Cell OS Support OS Support Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Note: 7th Gen Intel Core processors only support Win 10. Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF SD101-H110 : 434,189 hrs @ 25°C; 253,023 hrs @ 45°C ; 160,261 hrs @ 60°C SD103-H110 : 422,413 hrs @ 25°C; 245,506 hrs @ 45°C ; 155,547 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 20mm Bottom Side: 7mm Packing List Packing List 1 SD101/SD103-H110 motherboard 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 Serial ATA power Y cable (Length: 300mm) A81-002013-000G 1 DVD
