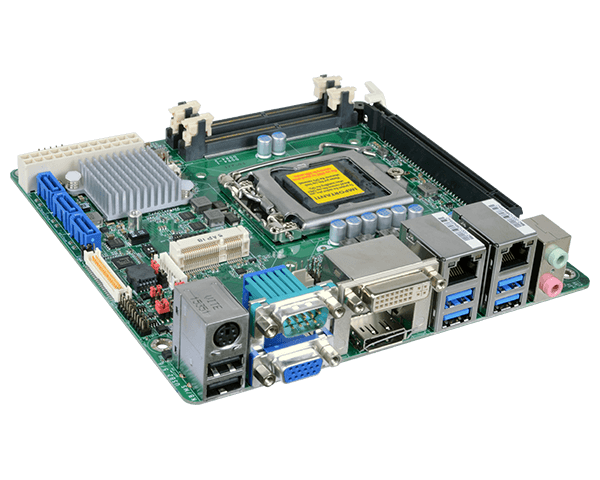

| SD100-Q170 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 7/6th Gen Intel® Core™ with Intel® Q170 Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 6 USB 2.0 Multiple expansion: 1 PCIe x16, 1 Mini PCIe 2 DDR4 SODIMM up to 32GB Four display ports support three independent displays: VGA + LVDS + DVI-I + DP++ 15-Year CPU Life Cycle Support ? System Processor 7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W 6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W Chipset Intel® Q170 Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA 1 x LVDS 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel, resolution up to 1920x1200 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz DP: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + DVI-I (DVI-D signal) + DP++ LVDS + DVI-I (DVI-D signal) + DP++ VGA + LVDS + DP++ VGA + LVDS + DVI-I (DVI-D signal) Expansion Interface 1 x PCIe x16 (Gen 3) 1 x Full-size Mini PCIe (mSATA/PCIe, PCIe by default) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232 (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ Audio 1 x Line-in (available upon request) 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.00mm pitch) 2 x RS-232 (2.00mm pitch) USB 4 x USB 2.0 (2.00mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x S/PDIF SATA 3 x SATA 3.0 (up to 6Gb/s) RAID 0/1 DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type ATX Connector 4-pin ATX 12V power 24-pin ATX power Consumption Typical: i7 65W: 12V @ 2.15A (25.86Watt) Max.: i7 65W: 12V @ 5.84A (70.12Watt) RTC Battery CR2032 Coin Cell OS Support OS Support Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Note: 7th Gen Intel Core processors only support Win 10. Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 434,530 hrs @ 25°C; 254,049 hrs @ 45°C ; 162,406 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 20mm Bottom Side: 3mm Packing List Packing List 1 SD100-Q170 motherboard 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G I/O shield A49-SD3300-001G 1 DVD
