| KU171/KU173 | 산업용보드 > EATX | 0 |
|---|---|---|
|

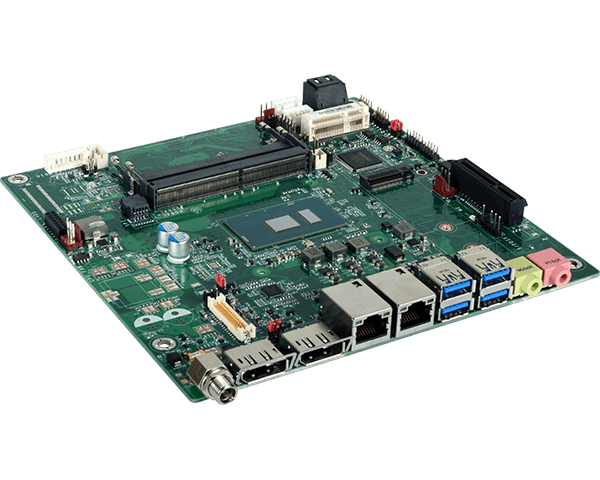

제품문의 02-3016-2464 http://www.wjubc.co.kr Multiple expansion: 1 PCIe x4, 1 M.2 M Key (SATA/PCIe) Three independent displays: LVDS*/eDP + DP++ + DP++ 2 DDR4 1866/2133MHz SODIMM up to 32GB 7th Gen Intel® Core™ Thin Mini-ITX 15-Year CPU Life Cycle Support ? System Processor 7th Generation Intel® Core™ Processors, BGA 1356 Socket Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.80 GHz (3.90 GHz), 15W Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.60 GHz (3.50 GHz), 15W Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.40 GHz, 15W Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.20 GHz, 15W Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x LVDS/eDP (eDP available upon request) 2 x DP++ LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP: resolution up to 4096x2304 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz Triple Displays LVDS + DP++ + DP++ eDP + DP++ + DP ++ Expansion Interface 1 x PCIe x4 (Gen 3) 1 x Full-size Mini PCIe (PCIe/USB) 1 x M.2 M Key (2242/2260/2280) (PCIe/SATA) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.0 Display 2 x DP++ Audio 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch) 1 x RS-232 (2.0mm pitch) USB 4 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel Connector (available upon request) Audio 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA Power 1 x SATA Connector (right angle) RAID 0/1/5 DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (KU171) Wide Range 9~36V (KU173) Connector DC-in Jack Right Angle Connector (4-pin) (available upon request) Vertical Type Connector (4-pin) (available upon request) RTC Battery CR2032 Coin Cell OS Support OS Support Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C / -20 to 70°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF KU171 : 433,836 hrs @ 25°C; 252,953 hrs @ 45°C ; 161,770 hrs @ 60°C KU173 : 416,214 hrs @ 25°C; 241,863 hrs @ 45°C ; 154,716 hrs @ 60°C Calculation model: Telcordia Issue 2 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 16.5mm Bottom Side: 3.5mm Packing List Packing List 1 KU171/KU173 motherboard 1 COM port cable (Length: 250mm, 1 x COM ports) 1 Serial ATA data with power cable (Length: 300mm) 1 DVD 1 Heat sink (Height: 25mm)
