| AL171/AL173 | 산업용보드 > EATX | 0 |
|---|---|---|
|

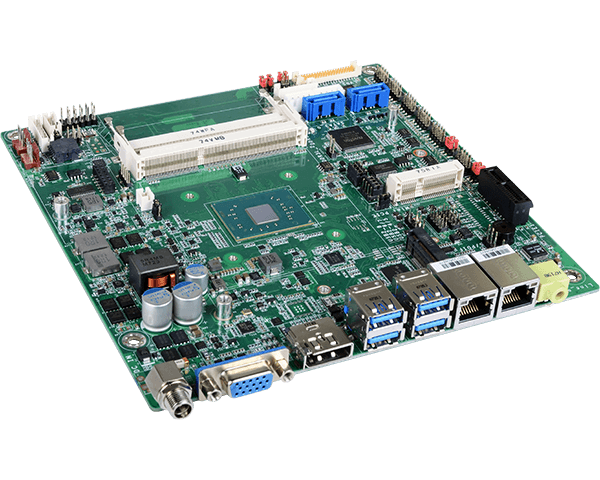

제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Atom™ Processor E3900 Mini-ITX 2 DDR3L 1867MHz SODIMM up to 8GB Three independent displays: (VGA/DP++) + (HDMI/DP++) + (LVDS/eDP) Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 5 USB 2.0 Multiple expansion: 1 M.2 B Key, 1 PCIe x1, 1 Mini PCIe 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1867MHz BIOS Insyde SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x VGA/DP++ 1 x HDMI/DP++ 1 x LVDS/eDP VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz Triple Displays VGA + HDMI + LVDS VGA + HDMI + eDP DP + HDMI + LVDS DP + HDMI + eDP VGA + DP + LVDS VGA + DP + eDP DP + DP + LVDS DP + DP + eDP Expansion Interface 1 x PCIe x1 (Gen 2) 1 x M.2 B Key 1 x Full-size Mini PCIe (PCIe/USB) Audio Audio Codec Realtek ALC262-VC2-GR Ethernet Controller 2 x Intel® I210IT PCIe (10/100/1000Mbps) or 2 x Intel® I211AT PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.0 Display 1 x HDMI/DP++ 1 x VGA/DP++ Audio 1 x Line-out Internal I/O Serial 2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch) 4 x RS-232 (2.0mm pitch) USB 4 x USB 2.0 (2.0mm pitch) 1 x USB 2.0 (2.54mm pitch) or 1 x Vertical USB 2.0 (type A) (available upon request) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel Connector Audio 1 x S/PDIF 1 x Audio (Line-out/Mic-in) SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (AL171) Wide Range 15~36V (AL173) Connector DC-in Jack Right Angle Connector (4-pin) (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise (64-bit) Yocto Project Fedora 24 (Intel Graphics Driver available) Ubuntu 15.10 (Intel Graphics Driver available) Environment Temperature Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 16.34mm Bottom Side: 3.30mm Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 AL171/AL173 motherboard 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G 1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
