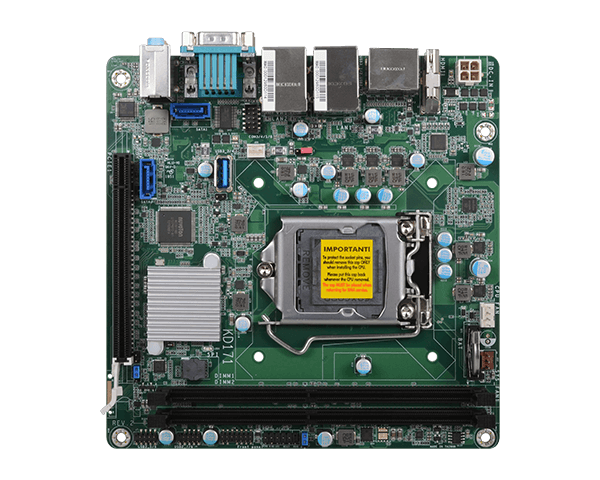

| KD171 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 7/6th Gen Intel® Core™ with Intel® Q170/H110 Rich I/O: 2 GbE, 6 COM, 3 USB 3.0, 6 USB 2.0 Expansion: 1 PCIe x16 Three independent displays: 2 DP++ + 1 HDMI 1.4 (optional) 2 DDR4 UDIMM up to 32GB 15-Year CPU Life Cycle Support ? System Processor 6th/7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® CoreTM i7-7700T Processor, Quad Core, 8M Cache, 2.9GHz (3.8GHz), 35W Intel® CoreTM i5-7500T Processor, Quad Core, 6M Cache, 2.7GHz (3.3GHz), 35W Intel® CoreTM i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 54W Intel® CoreTM i3-7101TE Processor, Dual Core, 3M Cache, 3.4GHz , 35W Intel® Celeron® G3930, Dual Core, 3M Cache, 2.9GHz, 51W Intel® Celeron® G3930E, Dual Core, 3M Cache, 2.9GHz, 54W Intel® CoreTM i7-6700TE, Quad Core, 2.4GHz (3.4GHz), 35W Intel® CoreTM i5-6500TE, Quad Core, 2.3GHz (3.3GHz), 35W Intel® CoreTM i3-6100, Dual Core, 3.7GHz, 51W Intel® CoreTM i3-6100TE, Dual Core, 2.7GHz, 35W Intel® Pentium® G4400, Dual Core, 3.3GHz, 54W Intel® Pentium® G4400TE, Dual Core, 2.4GHz, 35W Intel® Celeron® G3900, Dual Core, 2.8GHz, 51W Intel® Celeron® G3900TE, Dual Core, 2.3GHz, 35W Chipset Intel® Q170/H110 Memory Two 288-pin UDIMM up to 32GB Dual Channel DDR4 2133/2400 MHz BIOS Insyde SPI Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 2 x Full Size DP++ 1 x HDMI 1.4 (optional) Full Size DP++: resolution up to 4096x2160 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz Triple Displays 2 x Full Size DP++ 1 x HDMI 1.4 (optional) Expansion Interface 1 x PCIe x16 (Gen 3) Ethernet Controller 2 x GbE (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 2 x RS-232 (DB-9) USB 2 x USB 3.0 2 x USB 2.0 Display 2 x Full Size DP++ 1 x HDMI 1.4 (optional) Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 4 x RS-232 (Tx, Rx only) USB 1 x Vertical USB 3.0 4 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Infineon TPM 1.2/2.0 (available upon request) Power Type 12V DC Connector Vertical Type Connector (4-pin) DC-Jack (optional) Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows 10 LTSB (64 bits) Window 7 (32/64bit) for 6th Generation Processors Ubuntu 16.04 LTS Packing List Packing List 1 KD171-Q170/H110 motherboard 1 I/O shield
