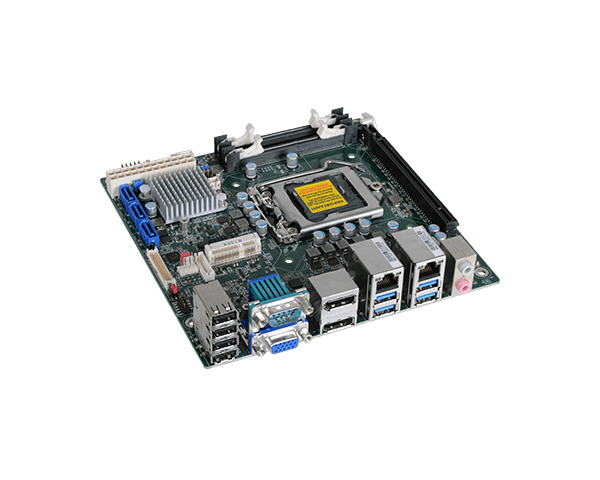

제품문의 02-3016-2464 http://www.wjubc.co.kr 8th Gen Intel® Core™ with Intel® Q370/C246/H310 2 DDR4 SODIMM up to 32GB Three independent displays: LVDS + VGA + DP++ Multiple Expansions: 1 PCIe x16 (Gen 3), 1 Full-size Mini PCIe (Q370/C246); 1 PCIe x16 (Gen 3), 1 mSATA (H310) Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 4 USB 2.0 (Q370/C246); 2 Intel GbE, 2 COM, 4 USB 3.1 Gen 1, 4 USB 2.0 (H310) 15-Year CPU Life Cycle Support ? System Processor 8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W Intel® Xeon E-2176G Processor (support ECC Memory) Intel® Core™ i7-8700 Processor Intel® Core™ i5-8500 Processor Intel® Core™ i3-8100 Processor (support ECC Memory) Intel® Pentium G5400 Processor (support ECC Memory) Intel® Celeron G4900 Processor (support ECC Memory) Chipset Intel® Q370/C246/H310 Chipset Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2400/2666MHz (C246 supoort ECC) BIOS AMI SPI 128Mbit Graphics Controller Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 ) Feature OpenGL 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x LVDS 1 x VGA 2 x DP++ LVDS: resolution up to 1920x1200 @ 60Hz VGA: resolution up to 1920x1200 @ 60Hz DP: resolution up to 4096x2304 @ 60Hz Triple Displays LVDS + VGA + DP++ Expansion Interface Q370/C246: 1 x PCIe x16 (Gen 3) 1 x Full-size Mini PCIe (& mSATA) ? H310: 1 x PCIe x16 (Gen 3) 1 x mSATA Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller Q370: 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) H310/C246: 1 x Intel® I219V PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232 (DB-9) USB Q370/C246: 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 4 x USB 2.0 ? H310: 4 x USB 3.1 Gen1 4 x USB 2.0 Display 1 x VGA 2 x DP++ Audio 1 x Line-in (available upon request) 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS-232 (RS-232 w/ power)(2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x S/PDIF SATA 3 x SATA 3.0 (up to 6Gb/s) ? DIO 1 x 8-bit DIO LPC 1 x LPC (support LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM dTPM 2.0 Power Type ATX Connector 4-pin ATX 12V power 24-pin ATX power Consumption TBD Battery CR2032 Coin Cell OS Support OS Support Windows 10 IoT Enterprise 64-bit Linux: Ubuntu 18.04 Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF CS100-C246: 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C CS100-Q370: 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C CS100-H310: 640,703 hrs @ 25°C; 393,874 hrs @ 45°C ; 259,692 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 20mm Bottom Side: 3mm Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 CS100 motherboard 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G 1 I/O shield A49-CS1000-000G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G
