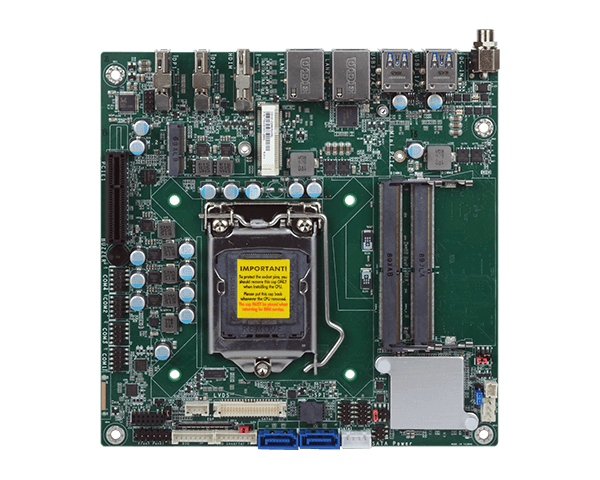

제품문의 02-3016-2464 http://www.wjubc.co.kr 8th Gen Intel® Core™ with Intel®Q370/C246 2 DDR4 2666MHz SODIMM up to 32GB Three independent displays: LVDS + HDMI + DP++ Multiple Expansions: 1 PCIe x4 Gen 3, 1 Full-size Mini PCIe, 1 M.2 2280 M Key, 1 M.2 2230 E Key Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W Intel® Xeon E-2176G Processor Intel® Core™ i7-8700 Processor Intel® Core™ i5-8500 Processor Intel® Core™ i3-8100 Processor Intel® Pentium G5400 Processor Intel® Celeron G4900 Processor Chipset Intel® Q370/C246 Chipset Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2666MHz (C246 support ECC) BIOS AMI SPI 128Mbit Graphics Controller Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 ) Feature OpenGL 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x LVDS/eDP (eDP available upon request) 1 x HDMI 2 x DP++ LVDS: resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 60Hz DP1.2: resolution up to 4096x2304 @ 60Hz Dual Displays/ Triple Displays DP+HDMI+LVDS/eDP DP+DP+HDMI DP+DP+LVDS/eDP Expansion Interface 1 x PCIe x4 (Gen 3) 1 x Full-size Mini PCIe (colay mSATA) 1 x M.2 2280 M Key for storage (PCIe) 1 x M.2 2230 E Key for BT/Wifi (USB/PCIe) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.1 Gen2 Type A Connector Display 1 x HDMI 2 x DP++ Internal I/O Serial 2 x RS-232/422/485 (2.0mm pitch) 2 x RS-232 (RS-232 w/ power)(2.0mm pitch) USB 4 x USB 2.0 Display 1 x LVDS Connector 1 x eDP (available upon request) Audio 1 x Front Audio SATA 2 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM 2.0, dTPM 2.0 (opt.) Power Type 12V DC-in Connector DC jack colay 4 pins power connector (opt.) Consumption TBD RTC Battery CR2032 Coin Cell OS Support Microsoft Windows 10 IoT Enterprise 64-bit Linux Linux: Ubuntu 18.04 Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 20mm, Bottom Side: 3mm Packing List Packing List 1 CS101 motherboard 1 Serial ATA data with power cable (Length: 300mm): A81-002013-000G
