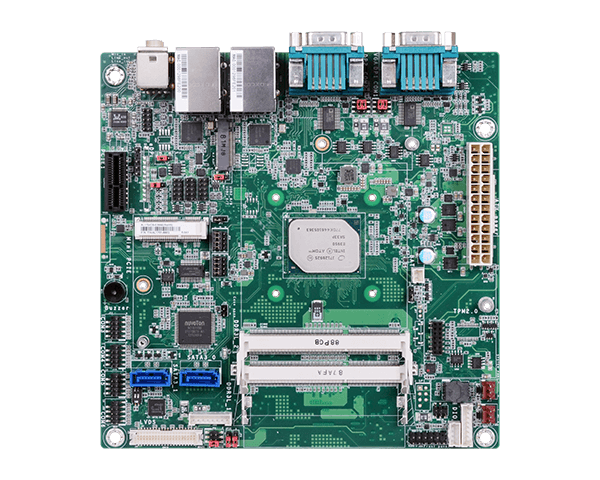

| AL170 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Atom™ Processor E3900 Mini-ITX 2 DDR3L 1867MHz SODIMM up to 8GB Three independent displays: (VGA/DP++) + (DP++) + (LVDS/eDP) Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 6 USB 2.0 Multiple expansion: 1 M.2 M Key, 1 PCIe x1 (Gen 2), 1 Full-Sized Mini PCIe 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® N3350,Dual core, 2M Cahe 1.1GHz (2.4GHz) , 6W Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1867MHz BIOS SPI 64Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x VGA/DP++ 1 x DP++ 1 x LVDS/eDP VGA: resolution up to 2560x1600 @ 60Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz eDP: resolution up to 4096x2160 @ 60Hz Triple Displays VGA + DP++ + LVDS VGA + DP++ + eDP DP++ + DP++ + LVDS DP++ + DP++ + eDP Expansion Interface 1 x PCIEx (Gen2, signal share w/M.2) 1 x M.2 M key (support 2242/2280, PCIE&SATA signal, default SATA) 1 x Full-size Mini PCIe (PCIe2.0/USB2.0)(USB3.1 Gen 1)(opt.) Audio Audio Codec Realtek ALC262-VC2-GR Ethernet Controller -40 to 85°C: 2 x Intel® I210IT PCIe (10/100/1000Mbps) or 0 to 60°C: 2 x Intel® I211AT PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 2 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 4 x USB 3.0 Display 1 x VGA/DP++ 1 x DP++ Audio 1 x Line-out 1 x Line-in (available upon request) 1 x Mic-in Internal I/O Serial 4 x RS-232 (2.0mm pitch) USB 6 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel connector or 1 x eDP LCD panel connector 1 x LCD/intverter Power Audio 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) colay with M.2 M key DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM dTPM 2.0 (opt.) Power Type ATX Connector 24-pin ATX power Consumption TDP: 6~12W RTC Battery CR2032 Coin Cell OS Support OS Support (UEFI Only) Windows 10 64bits (LTSB) Ubuntu 16.04.2 Environment Temperature Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 357,197 hrs @ 25°C; 206,214 hrs @ 45°C ; 130,208 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 38.5mm Bottom Side: 3.00mm Packing List Packing List 1 AL170 motherboard I/O shield A49-AL1700-010G (VGA/DP++) or A49-AL1700-000G (DP++/DP++) Heatsink TBD Serial ATA data cable (Length: 500mm) 332-553001-005G COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
