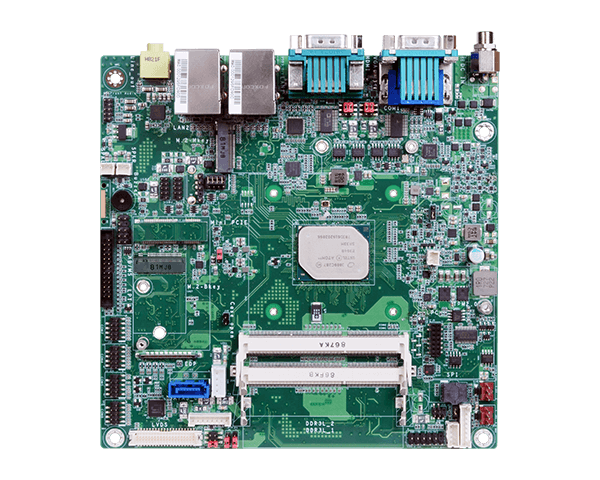

| AL102 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Atom™ Processor E3900 Mini-ITX 2 DDR3L 1867MHz SODIMM up to 8GB Three independent displays: (VGA) + (HDMI) + (LVDS/eDP) Rich I/O: 2 Giga LAN, up to 6 COM, 4 USB 3.0, 5 USB 2.0 Multiple expansion: 1 M.2 M Key, 1 x M.2 E Key, 1 Full-Sized Mini PCIe (opt.) 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1867MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x VGA 1 x HDMI 1 x LVDS/eDP (opt.) VGA: resolution up to 2560x1600 @ 60Hz HDMI: resolution up to 3840x2160@30Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2160 @ 60Hz Triple Displays VGA/HDMI/LVDS (opt.) VGA/HDMI/eDP (opt.) Expansion Interface 1 x M.2 M key (support 2242/2280) (PCIe/SATA3.0) 1 x M.2 E key (support 2230) (PCIe/USB2.0) 1 x Full-size Mini PCIe (PCIe2.0/USB2.0) (opt.) Audio Audio Codec Realtek ALC269Q Ethernet Controller 2 x Realtek RTL8111H-CG Rear I/O Ethernet 2 x GbE (RJ-45) Serial 2 x RS-232/RS422/485 (RS422/485 opt.) (DB-9) USB 4 x USB 3.0 Display 1 x VGA 1 x HDMI Audio 1 x Line-out Internal I/O Serial 4 x RS-232 (2.0mm pitch) (opt.)) USB 4 x USB 2.0 (2.0mm pitch) 1 x USB 2.0 (2.54mm pitch) or 1 x Vertical USB 2.0 Type A (opt.) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel Connector (opt.) Audio 1 x Audio (Line-out/Mic-in) SATA 1x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM TPM 2.0 (opt.) Power Type Single 12V +/-10% DC Connector DC-in Jack Right Angle Connector (4-pin) (opt.) Vertical Type Connector (4-pin) (opt.) Consumption TBD Battery CR2032 Coin Cell OS Support Microsoft Windows 10 64bits (LTSB) Environment Temperature Operating: 0 to 50°C Storage: -30 to 60°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: 40mm Bottom Side: 3.3mm
