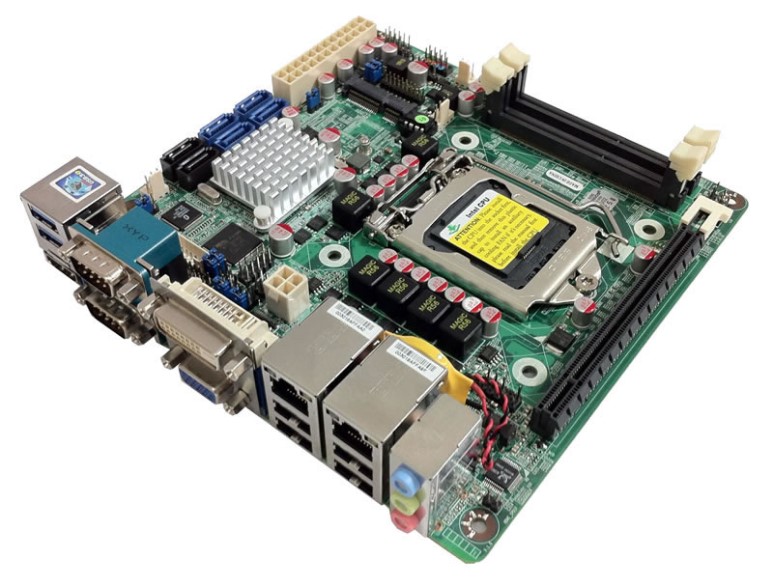

Jetway NF9E-Q77 Mini-ITX Motherboard

Processor

3rd Generation Intel¢ç Core i7 / i5 / i3 / Pentium Processor

Socket LGA 1155 (Formerly Ivy Bridge)

Chipset

Intel Q77 (AKA Panther Point)

Memory

2 x 204-pin SODIMM DDR3-1066/1333 Dual Channel (up to 16 GB)

Graphics

Requires Intel Core processor with Intel HD Graphics

Audio

Realtek ALC662 5.1 Channel Audio

LAN

1 x Intel 82579LM PHY Gigabit LAN (iAMT 8.0)

1 x Intel 82574L PCI-E Gigabit LAN

Storage

2 x SATA3 6Gb/s Ports with RAID 0, 1

4 x SATA2 3Gb/s Ports with RAID 0, 1, 5, 10

Super IO

FINTEK F71869A

Back Panel Connectors

2 USB 3.0

1 HDMI (up to 1920 x 1200)

2 RS232 Serial ports

1 VGA (up to 2048 x 1536)

1 DVI-D (up to 1920 x 1200)

4 USB 2.0

2 RJ45 LAN (10/100/1000)

3 3.5mm Audio

Onboard I/O Connectors

1 PCI-E 3.0 x16 Slot (by 16-lane)

1 PCI Express Mini Card Slot (half-size)

2 SATA3 6Gb/s Connectors

4 SATA2 3Gb/s Connectors

1 USB Pin Headers for up to 2 additional USB 3.0 Ports

1 USB Pin Headers for up to 2 additional USB 2.0 Ports

1 RS422/485 TX-RXCOM header (Disable External RS232 COM2 Required)

1 24-bits Dual Channel LVDS connector/Inverter (CHRONTEL CH7308B chipset up to 1600 x 1200)

1 9-pin Audio header

1 GPIO header

1 CIR header

1 PS2 Keyboard/Mouse header

1 Front Panel header

3 Fan headers

1 24-pin ATX Power Connector

1 4-pin 12V ATX Power Connector

Market Segments Supported

¡î Digital Security & Surveillance

¡î Digital Signage

¡î Gaming

¡î Industrial Automation/Control

¡î Medical

¡î Retail (POS/Kiosk/ATM)

¡î Networking/Storage Server/Mail Server/Print Server

¡î Thin Client

¡î HTPC
