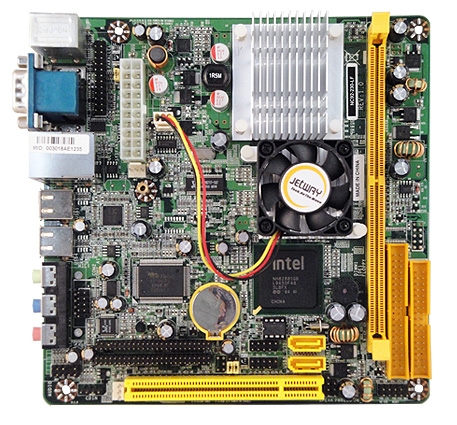

Jetway NC92 Hybrid Mini-ITX Motherboard

Processor

1st Generation Intel¢ç Atom Dual Core 330/230 (Formerly Diamondville)

Chipset

Intel¢ç 945GC + ICH7 @ 25.5W

Memory

1 x DDR2 400/533 DIMM slot (up to 2 GB)

Graphics

Intel GMA950 Integrated Graphics

Audio

Realtek ALC662 5.1 Channel Audio

LAN

1 x Realtek RTL8111C PCI-E Gigabit Ethernet

Storage

2 x SATA2 3Gb/s Connectors

1 x IDE Connector (UDMA 33/66/100)

Super IO

FINTEK F71862FG

Back Panel Connectors

1 PS/2 Mouse

1 PS/2 Keyboard

1 Serial

1 VGA

4 USB 2.0

1 RJ45 LAN (10/100/1000)

3 3.5mm Audio

Onboard I/O Connectors

1 PCI Slot

1 Floppy Connector

1 Parallel header

1 Serial header (RS232)

1 IDE Connector (UDMA 33/66/100)

2 SATA2 3Gb/s Connectors

2 USB Pin Headers for up to 4 additional USB 2.0 Ports

1 9-pin Audio Connector

1 Front Panel Connector

3 Fan Headers

1 20-pin ATX Power Connector

1 Jetway daughter board Connector

Market Segments Supported

¡î Digital Security & Surveillance

¡î Digital Signage

¡î Gaming

¡î Industrial Automation/Control

¡î Medical

¡î Retail (POS/Kiosk/ATM)

¡î Networking/Storage Server/Mail Server/Print Server

¡î Thin Client

¡î HTPC
