NF9J-Q87

산업용보드 > EATX

- 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor

- Long-Life Embedded Class with Planned Lifecycle Through Q2’2020

- Intel HD 4000/5000 Graphics, DirectX 11.1

- Support up to Three Independent Displays, HDMI, DVI, VGA, 24bit LVDS

- Supports iAMT 9.0 Function

- ECO-design for EuP/ErP

Specification

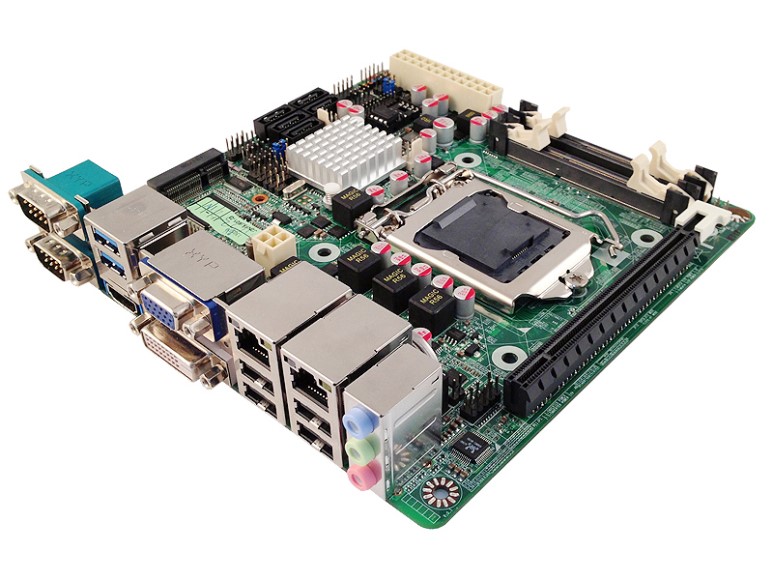

Jetway NF9J-Q87 Mini-ITX Motherboard
Processor	4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor Socket LGA 1150 (Formerly Haswell)
Chipset	Intel Q87 (AKA Lynx Point)
Memory	2 x 204-pin SODIMM DDR3-1600 Dual Channel (up to 16 GB)
Graphics	Requires Intel Core processor with Intel HD Graphics
Audio	Realtek ALC662 5.1 Channel Audio
LAN	1 x Intel i217LM PHY Gigabit LAN (iAMT 9.0) 1 x Intel i211AT PCI-E Gigabit LAN
Storage	5 x SATA3 6Gb/s Ports with RAID 0, 1, 5, 10 1 x Shared mSATA/mini-PCI Express slot (Full-size)
Super IO	FINTEK F81866A
Back Panel Connectors
1 RS232/422/485 jumperless com port 1 RS232 Serial port 1 HDMI (up to 1920 x 1080) 2 USB 3.0 1 VGA (up to 1920 X 1200) 1 DVI-D (up to 1920 x 1080) 4 USB 2.0 2 RJ45 LAN (10/100/1000) 3 3.5mm Audio
Onboard I/O Connectors
1 PCI-E 3.0 x16 Slot (by 16-lane) 1 Shared mSATA/mini-PCI Express slot (Full-size) 5 SATA3 6Gb/s Connectors 1 USB Pin Headers for up to 2 additional USB 3.0 Ports 2 USB Pin Headers for up to 4 additional USB 2.0 Ports 1 24-bits Dual Channel LVDS connector/Inverter 1 9-pin Audio header 2 Serial Headers (1 * RS232, 1 * RS232/422/485) 1 GPIO header 1 Chassis Intrusion header 1 PS2 Keyboard/Mouse header 1 Front Panel header 3 Fan headers 1 24-pin ATX Power Connector 1 4-pin 12V ATX Power Connector
Market Segments Supported
√ Digital Security & Surveillance √ Digital Signage √ Gaming √ Industrial Automation/Control √ Medical √ Retail (POS/Kiosk/ATM) √ Networking/Storage Server/Mail Server/Print Server √ Thin Client √ HTPC
