| BW051 | 산업용보드 > EATX | 0 |
|---|---|---|
|

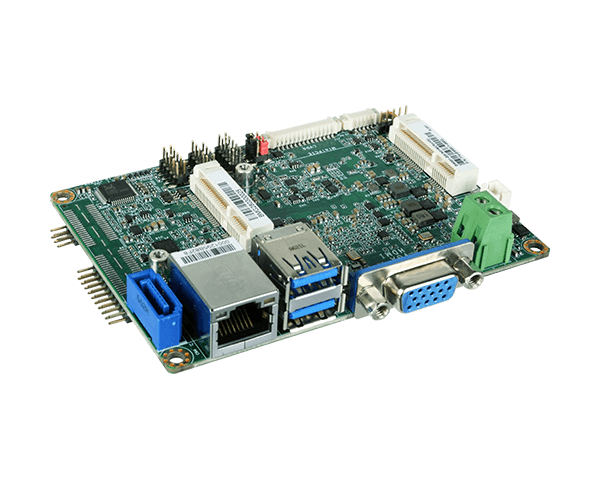

제품문의 02-3016-2464 http://www.wjubc.co.kr Intel® Pentium®/Celeron® N3000 2.5" Pico-ITX 1 DDR3L SODIMM up to 8GB Dual independent displays: VGA*/HDMI + LVDS Expansion and Storage: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0 Rich I/O: 1 Intel GbE, 2 COM, 2 USB 3.0, 2 USB 2.0 15-Year CPU Life Cycle Support ? System Processor NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz NXP i.MX6 Cortex-A9 Quad, 1.0 GHz Memory 1GB/2GB SDRAM Memory Down Single Channel DDR3L 1600MHz Flash 4MB NOR Flash Graphics Display 1 x HDMI 1 x LVDS HDMI: resolution up to 1920x1080 @ 60Hz LVDS: single channel, resolution up to 1366x768 @ 60Hz Single/Dual Displays Yocto: HDMI or LVDS (Default) Android: HDMI + LVDS (available upon request) Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) 1 x SIM (Option) Ethernet Controller 1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps) Rear I/O Ethernet 1 x GbE (RJ-45) Serial 1 x RS-485 (2-wire) USB 2 x USB 2.0 1 x USB 2.0 OTG Port Display 1 x HDMI Buttons 1 x Power Button I/O eMMC Supports 8GB, 16GB and 32GB eMMC onboard Internal I/O Serial 1 x RS-232 (4-wire) 1 x RS-232/422/485 (8-wire) USB 2 x USB 2.0 Display 1 x LVDS LCD Panel Connector SATA 1 x SATA 2.0 (up to 3Gb/s) (Quad processor only) DIO 1 x 8-bit DIO SD 1 x Micro SD Slot CANBus 1 x CANBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type Single 5V +/-10% DC Connector DualLite: DC jack Quad: Terminal block(2 poles) Consumption Typical: i.MX6:5V @ 0.460A (2.30Watt) Max.: i.MX6:5V @ 0.963A (4.82Watt) OS Support OS Support Yocto (1.8, Default Preloaded on eMMC) Android (5.1.1) Environment Temperature Operating: 0 to 60°C / -20 to 70°C Storage: -40 to 85°C Humidity Operating: 5 to 95% RH Storage: 5 to 95% RH Mechanism Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83") Height PCB: 1.6mm Top Side: 15.5mm, Bottom Side: 4mm Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 FS051 board 1 1 terminal block for RS485 342-361021-000 1 Heat spreader (Height: 11mm) A71-808303-000G Note: Please choose "FS051 product page >Download button" to download the Driver.
