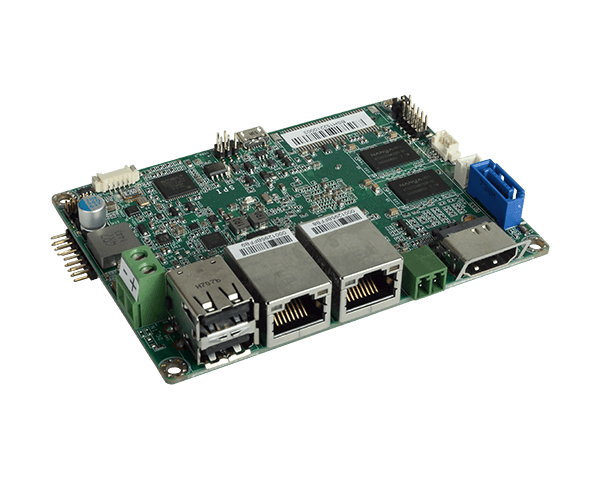

| FS053 | 산업용보드 > EATX | 0 |
|---|---|---|
|
NXP i.MX6 Processor 2.5" Pico-ITX Expansion: 1 Mini PCIe, 1 SD 1GB/2GB DDR3L SDRAM memory down Dual independent displays: HDMI + LVDS Rich I/O: 2 GbE, 2 COM, 4 USB 2.0 15-Year CPU Life Cycle Support ? System Processor NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz NXP i.MX6 Cortex-A9 Quad, 1.0 GHz Memory 1GB/2GB SDRAM Memory Down Single Channel DDR3L 1600MHz BIOS 4MB NOR Flash Graphics Display 1 x HDMI 1 x LVDS HDMI: resolution up to 1920x1080 @ 60 Hz LVDS: single channel, resolution up to 1366x768 @ 60Hz Single/Dual Displays Yocto: HDMI or LVDS (Default) Android: HDMI + LVDS (available upon request) Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) Ethernet Controller 1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps) 1 x LAN7500 Ethernet (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-485 (2-wire) USB 2 x USB 2.0 1 x USB 2.0 OTG Port Display 1 x HDMI I/O eMMC Supports 8GB, 16GB and 32GB eMMC onboard Internal I/O Serial 1 x RS-232/422/485 (8-wire) USB 1 x USB 2.0 Display 1 x LVDS LCD Panel Connector SATA 1 x SATA 2.0 (up to 3Gb/s) (Quad processor only) DIO 1 x 8-bit DIO SD 1 x Micro SD Slot Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type 9~36V DC Connector Terminal block (2-pin) Consumption Typical: 12V @ 0.355A (4.26Watt) Max.: 12V @ 0.631A (7.58Watt) OS Support OS Support Yocto (1.8, Default Preloaded on eMMC) Android (5.1.1) Environment Temperature Operating: -20 to 70°C/0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 95% RH Storage: 5 to 95% RH Mechanism Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83") Height PCB: 1.6mm Top Side: 16.15mm, Bottom Side: 4mm Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 FS053 board 1 terminal block for RS485 342-361021-000 1 Heat spreader (Height: 11mm) A71-808303-000G Note: Please choose "FS053 product page >Download button" to download the Driver.
