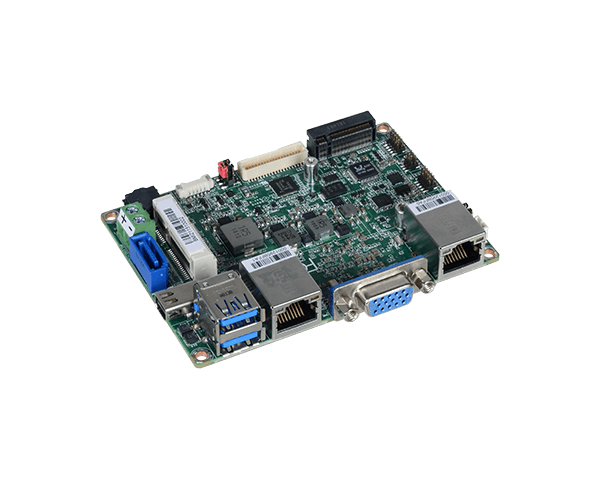

Intel® Atom™/Pentium®/Celeron® Processor E3900 1 DDR3L SODIMM up to 8GB Triple independent displays: VGA + Mini DP++ + LVDS Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.0, 2 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel® Atom™ Processor E3900 Family, BGA 1296 Intel® Atom™ x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel® Atom™ x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Atom™ x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz BIOS Insyde SPI 64Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x Mini DP++ 1 x VGA 1 x LVDS Mini DP++: resolution up to 4096x2160 @ 60Hz VGA: resolution up to 2048x1536 @ 50Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz Triple Displays VGA + Mini DP++ + LVDS Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB 2.0) 1 x M.2 B key 2242. (PCIe/USB 2.0/SATA 3.0) Audio Audio Codec Realtek ALC262-VC2-GR Ethernet Controller 2 x Intel® I211AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request) Rear I/O Ethernet 2 x GbE (RJ-45) USB 2 x USB 3.0 Display 1 x Mini DP++ 1 x VGA 1 x LVDS Internal I/O Serial 1 x RS-232/422/485 (1.27mm pitch, right angle type) USB 2 x USB 2.0 (1.27mm pitch) Display 1 x LVDS LCD Panel Connector Audio 1 x Audio (Line-out/Mic-in) SATA 1 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM2.0 Power Type Single 12V +/-10% DC Connector 2-pin Terminal Block 2-pin Vertical Type Connector (opt.) RTC Battery CR2032 Coin Cell OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise (64-bit) Ubuntu 16.04 Environment Temperature Operating: 0 to 60°C, -40 to 85 °C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83") Height PCB: TBD Top Side: TBD Bottom Side: TBD Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 AL051 board 1 Serial ATA data cable (Length: 500mm) 332-553002-005G 1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G 1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-000G, N Series CPU: A71-808309-000G
