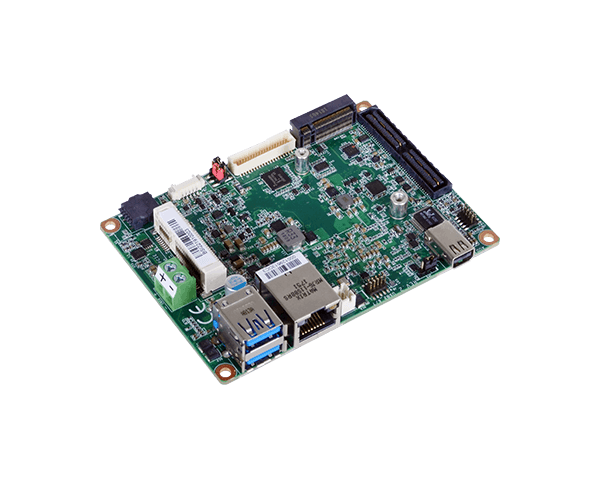

| AL053 | 산업용보드 > EATX | 0 |
|---|---|---|
|
Intel Atom® Processor E3900 1 DDR3L SODIMM up to 8GB Two independent displays: LVDS + Mini DP++ Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 2 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz BIOS Insyde SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x Mini DP++ 1 x LVDS Mini DP++: resolution up to 4096x2160 @ 60Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz Dual Displays LVDS + Mini DP++ Storage External/Internal 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0) Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0) Audio Audio Codec Realtek ALC262-VC2-GR Ethernet Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request) Rear I/O Ethernet 1 x GbE (RJ-45) USB 2 x USB 3.1 Gen1 Display 1 x Mini DP++ Internal I/O Serial 1 x RS-232/422/485 (1.27mm pitch) USB 2 x USB 2.0 (1.27mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM 2.0 Power Type 9~36V DC Connector 2-pin Terminal Block RTC Battery CR2032 Coin Cell OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise (64-bit) Ubuntu 16.04 Environment Temperature Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83") Height PCB: 1.6mm Top Side: 15mm Bottom Side: 8mm Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 AL053 board 1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-000G, N Series CPU: A71-808309-000G
