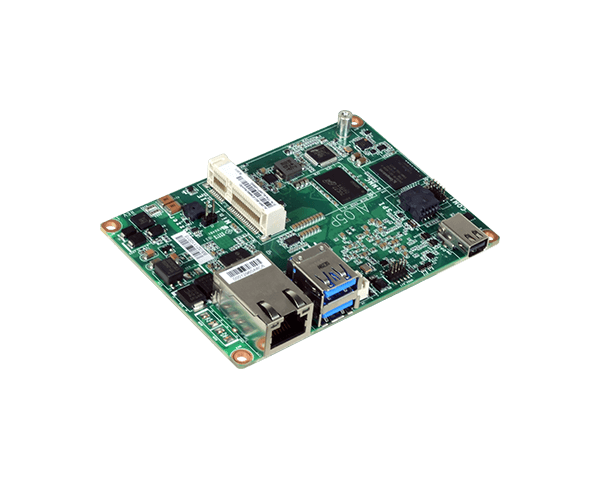

| AL05P | 산업용보드 > EATX | 0 |
|---|---|---|
|
Intel® Atom™/Pentium®/Celeron® Processor E3900 Support LPDDR4 memory down up to 4GB Rich I/O: 1 LAN, 1 COM, 2 USB 3.0, 2 USB 2.0 Expansion and Storage: 1 Mini PCIe, 1 SMBus, 1 eMMC PoE single board solution support PoE PD 48VDC 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory SDRAM Memory Down up to 4GB Single Channel DDR4 2400MHz BIOS Insyde SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x Mini DP++ Mini DP++: resolution up to 4096x2160 @ 60Hz Storage eMMC 1 x 16GB/32GB/64GB eMMC Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0) Ethernet Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request) Rear I/O Ethernet 1 x GbE (RJ-45) USB 2 x USB 3.1 Gen1 Display 1 x Mini DP++ Internal I/O Serial 1 x RS-232/422/485 (1.27mm pitch) USB 2 x USB 2.0 (1.27mm pitch) DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM 2.0 Power Type 48VDC PoE Connector PoE LAN RTC Battery CR2032 Coin Cell OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise (64-bit) Ubuntu 16.04 Environment Temperature Operating: 0 to 60°C, -20 to 70°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83") Height PCB: 1.6mm Top Side: 15mm, Bottom Side: 8mm Packing List Packing List 1 AL05P board 1 Heat spreader (Height: 15mm) E Series CPU: A71-808315-000G, N Series CPU: A71-808315-010G
