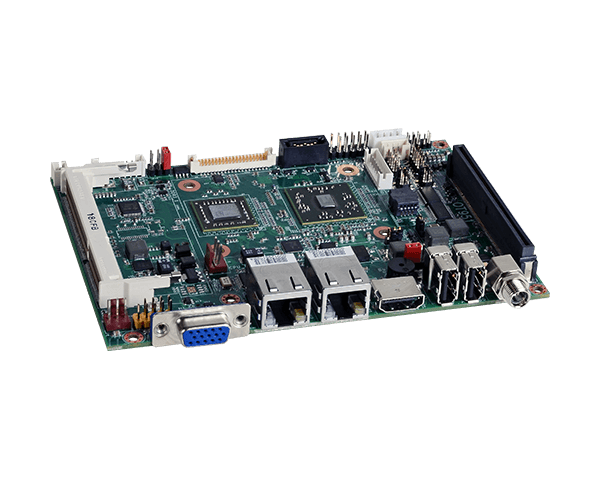

| OT951-D | 산업용보드 > EATX | 0 |
|---|---|---|
|
AMD® Embedded G-Series with AMD® A50M 1 DDR3 SODIMM up to 8GB 1 HDMI, 1 VGA, 1 LVDS Expansion: 1 Mini PCIe, 1 I/O expansion Rich I/O: 2 Intel GbE, 2 COM, 4 USB 2.0 7-Year CPU Life Cycle Support ? System Processor OT951-DT56N: - AMD® T56N, 1.65GHz, 2x 512KB L2, 18W TDP, dual-core - Cooling: heatsink with cooling fan OT951-DT40N: - AMD® T40N, 1.0GHz, 2x 512KB L2, 9W TDP, dual-core - Cooling: heatsink without cooling fan Chipset AMD® A50M Memory One 204-pin DDR3 SODIMM up to 8GB Single Channel DDR3 1066/1333MHz (OT951-DT56N) Single Channel DDR3 1066MHz (OT951-DT40N) BIOS AMI SPI 64Mbit Graphics Controller AMD Radeon™ HD 6320 (OT951-DT56N) AMD Radeon™ HD 6290 (OT951-DT40N) Feature MD Turbo Core 2.0 technology DirectX 11, OpenGL 3.2 and OpenCL 1.1 Hardware H.264, MPEG4 Part 2, VC-1, and MPEG2 decode Display 1 x HDMI 1 x LVDS 1 x VGA LVDS: Chrontel CH7511B, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz VGA: resolution up to 2048x1536 @ 60Hz (OT951-DT56N); resolution up to 1920x1200 @ 60Hz (OT951-DT40N) HDMI: resolution up to 1920x1080 @ 60Hz Expansion Interface 1 x Half-size Mini PCIe 1 x Connector for daughterboard expansion (2 PCIe x1, 4 USB 2.0, 1 LPC) Audio Audio Codec Realtek ALC888 Ethernet Controller 2 x Realtek® RTL8111DL (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 2 x USB 2.0 Display 1 x HDMI 1 x VGA Internal I/O Serial 2 x RS232/422/485 USB 2 x USB 2.0 Display 1 x LVDS Audio 1 x line-out 1 x mic-in SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V Connector DC-in jack (default) 4-pin power connector (available upon request) Consumption 26.66 W with T56N at 1.65GHz and 1x 2GB DDR3 SODIMM 19.23 W with T40N at 1.00GHz and 1x 1GB DDR3 SODIMM Environment Temperature Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Operating: 0oC to 60oC Storage: -20oC to 85oC Humidity Operating: 10% to 90% RH Storage: 10 to 90% RH Mechanism Dimensions 3.5" board 146mm (5.75") x 102mm (4.02") Standards and Certifications Certifications CE, FCC Class B, UL, RoHS Packing List Packing List 1 OT951-D board 1 Serial ATA data cable 1 DVD
