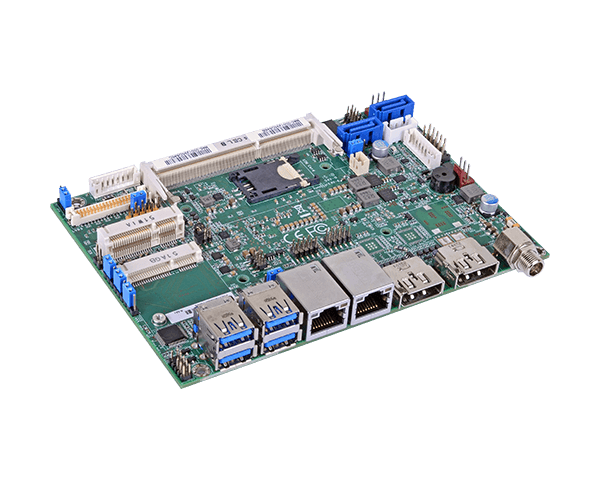

| HU551/HU553 | 산업용보드 > EATX | 0 |
|---|---|---|
|
1 DDR3L SODIMM up to 8GB 1 LVDS, 2 DP or 2 HDMI Expansion: 2 Mini PCIe, 1 SIM Rich I/O: 2 Intel GbE, 3 COM, 4 USB 3.0, 2 USB 2.0 4th Gen Intel® Core™ 3.5" SBC 7-Year CPU Life Cycle Support ? System Processor Intel® Core™ i7-4650U, 4M Cache, 1.7GHz (3.3GHz), 15W Intel® Core™ i5-4300U, 3M Cache, 1.9GHz (2.9GHz), 15W Intel® Core™ i3-4010U, 3M Cache, 1.7GHz, 15W Intel® Celeron® 2980U, 2M Cache, 1.6GHz, 15W Memory One 204-pin SODIMM up to 8GB Single channel DDR3L 1333/1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics GT series Feature Intel® Clear Video Technology Intel® Advanced Vector Extensions 2.0 (Intel® AVX 2.0) Instructions DirectX 11.1, OpenGL 4.0, OpenCL 1.2 Display 1 x LVDS 2 x DP LVDS: NXP PTN3460, 48-bit, dual channel, resolution up to 1920x1200 @ 60Hz DP: resolution up to 3200 x 2000 @ 60Hz Expansion Interface 2 x Mini PCIe 1 x SIM Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I218 with iAMT9.5 (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 4 x USB 3.0 Display 2 x DP Internal I/O Serial 1 x RS485 (2.0mm pitch) 2 x RS232 (2.0mm pitch) USB 2 x USB 2.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (HU551) Wide Range 15~36V (HU553) Connector DC-in Jack Vertical Type Connector (4-pin) (available upon request) Consumption HU553-N-4650U: 19.68W with i7-4650U at 1.7GHz and 2x 4GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Environment Temperature Operating: 0°C to 60°C Storage: -20°C to 85°C Humidity 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 3.5" board 146mm (5.75") x 102mm (4.02") Packing List Packing List 1 HU551/HU553 board 1 Serial ATA data cable: 332-553001-005G 1 Serial ATA power Y cable: A81-004041-016G 1 DVD 1 Heat sink with fan: A71-110021-000G
