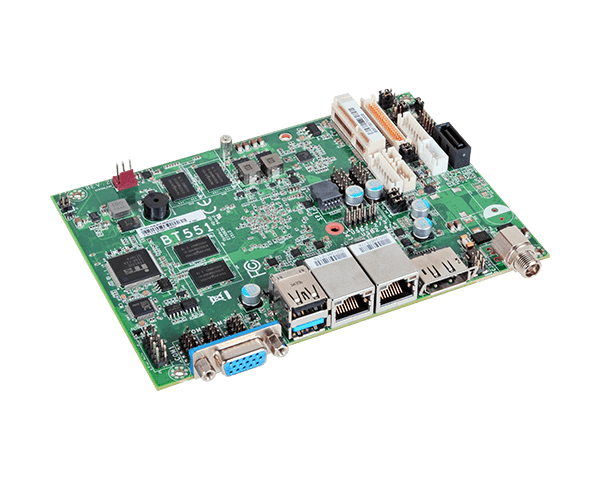

| BT551/BT553 | 산업용보드 > EATX | 0 |
|---|---|---|
|
2GB/4GB DDR3L memory down 1 VGA, 1 LVDS, 1 DP Expansion: 1 Mini PCIe Rich I/O: 2 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0 Intel Atom® Processor E3800 15-Year CPU Life Cycle Support ? System Processor Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Memory 2GB/4GB DDR3L memory down Dual channel DDR3L 1066/1333MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS) Display 1 x VGA 1 x LVDS 1 x DP VGA: 24-bit, resolution up to 2560x1600 @ 60Hz LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz DP: supports DP++, resolution up to 2560x1600 @ 60Hz Expansion Interface 1 x Mini PCIe Audio Audio Codec Realtek ALC888 Ethernet Controller 2 x Intel® I210 PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) USB 1 x USB 3.0 1 x USB 2.0 Display 1 x DP 1 x VGA Internal I/O Serial 1 x RS485 (2.0mm pitch) 2 x RS232 (2.0mm pitch) USB 4 x USB 2.0 Display 1 x LVDS Audio 1 x Line-out 1 x Mic-in SATA 1 x SATA 2.0 (up to 3Gb/s) DIO 8-bit DIO CANBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (BT551) Wide Range 15~36V (BT553) Connector DC-in Jack Vertical Type Connector (4-pin) (available upon request) OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Windows 10 IoT Enterprise (64-bit) Environment Temperature Operating : 0°C to 60°C - Atom, Celeron (Fanless) : -20°C to 70°C - Celeron (Fanless) : -40°C to 85°C - Atom (Fanless) Storage: -40°C to 85°C Humidity Operating: 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 3.5" board 146mm (5.75") x 102mm (4.02") Packing List Packing List 1 BT551/BT553 board 1 Serial ATA data with power cable: A81-002013-000G 1 DVD 1 Heat spreader with heat sink: 761-BT5511-000G
