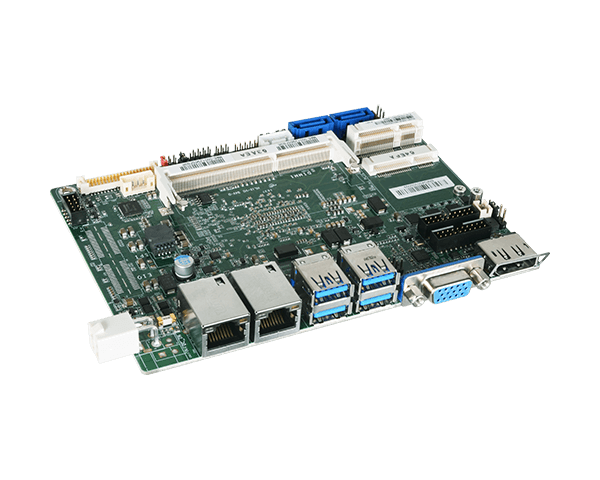

6th Gen Intel® Core™ 3.5" SBC Wireless communication: Mini PCIe Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 2 USB 2.0 1 DDR3L SODIMM up to 8GB Three independent displays: VGA + LVDS + DP++ 15-Year CPU Life Cycle Support ? System Processor 6th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1600MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA 1 x LVDS 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + LVDS + DP++ Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB/SATA, SATA by default) 1 x Half-size Mini PCIe (PCIe/USB, PCIe by default) 1 x SIM (supported by half-size Mini PCIe) (available upon request) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.0 Display 1 x VGA 1 x DP++ Internal I/O Serial 2 x RS-232/422/485 (2.0mm pitch) 2 x RS-232 (2.0mm pitch) USB 2 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) SATA 2 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type Single 12V +/-10% DC Connector Right Angle Connector (4-pin) DC Jack (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption Typical: 6300U:12V @ 0.40A (4.80Watt) Max.: 6300U:12V @ 2.08A (24.96Watt) Battery CR2032 Coin Cell OS Support Microsoft Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 64-bit Linux Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C (Opt. -20 to 70°C) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF SU551 : 430,978 hrs @ 25°C; 253,129 hrs @ 45°C ; 157,798 hrs @ 60°C Mechanism Dimensions 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02") Height PCB: 1.6mm Top Side: 15.5mm Bottom Side: 4.0mm Standards and Certifications Certifications CE Certification FCC Certification RoHS Certification Packing List Packing List 1 SU551 board 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 DVD 1 Heat sink (Height: 20.85mm) A71-011061-000G
