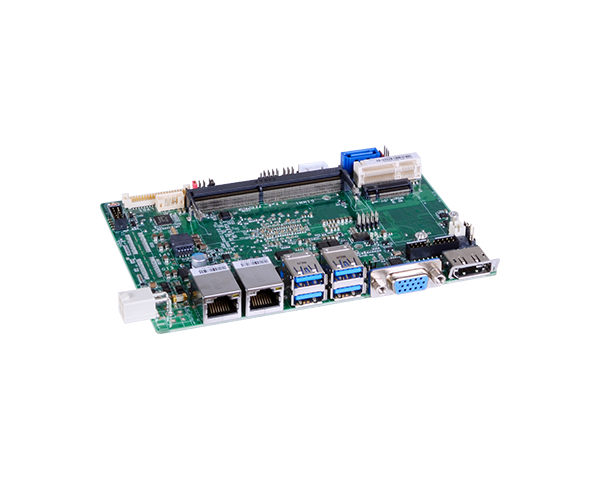

7th Gen Intel® Core™ 3.5" SBC 1 DDR4 SODIMM up to 16GB Three independent displays: VGA + LVDS + DP++ Wireless communication: Mini PCIe Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2 15-Year CPU Life Cycle Support ? System Processor 7th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W Memory One 260-pin SODIMM up to 16GB Single Channel DDR4 1866/2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA/DDI 1 x LVDS/eDP 1 x DP++/DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + LVDS + DP++ Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB) 1 x M.2 B key 2242 (PCIe/USB2.0/SATA3.0) 1 x Extension I/O connector (available upon request) Audio Audio Codec Realtek ALC888 Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) USB 4 x USB 3.0 Display 1 x VGA 1 x DP++ Internal I/O Serial 2 x RS-232/422/485 (2.0mm pitch) USB 2 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM, TPM2.0 Power Type Single 12V +/-5% DC Connector Right Angle Connector (4-pin) DC Jack (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption Idle: i7-7600U:12V @ 0.9A (10.8Watt) Max.: i7-7600U:12V @ 3.2A (38.5Watt) RTC Battery CR2032 Coin Cell OS Support Microsoft Windows 10 IoT Enterprise 64-bit Linux Ubuntu 16.04 Yocto Environment Temperature Operating: 0 to 60°C (Opt. -20 to 70°C) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 477,146 hrs @ 25°C; 277,228 hrs @ 45°C; 172,875 hrs @ 60°C Mechanism Dimensions 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02") Height PCB: 1.6mm Top Side: 16.3mm Bottom Side: 4.0 mm Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 KU551 board 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 Heat sink (Height: 25.8mm) A71-011080-010G
