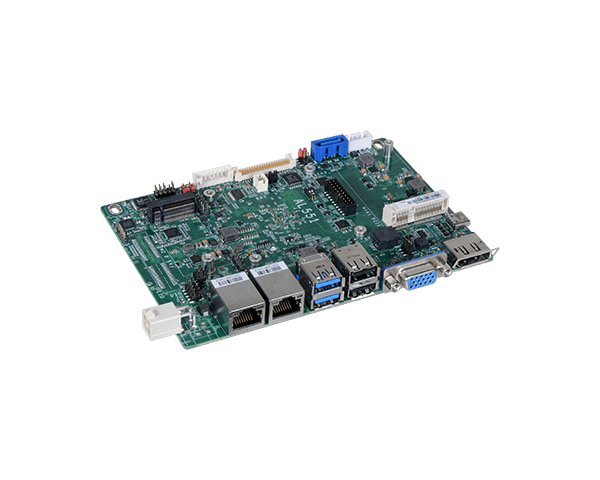

Intel Atom® E3900 3.5" SBC 1 DDR3L SODIMM up to 8GB Three independent displays: VGA + LVDS + DP++ Wireless communication: mini PCIe Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.0, 4 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz BIOS Insyde SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x VGA 1 x LVDS 1 x DP++ VGA: resolution up to 2048x1536 @ 50Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz Triple Displays VGA + LVDS + DP++ Expansion Interface 1 x Full-size mini-PCIe (USB/PCIe) 1 x Extension I/O connector (available upon request) 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0) Audio Audio Codec Realtek ALC262 Ethernet Controller 2 x Intel® I211AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request) Rear I/O Ethernet 2 x GbE (RJ-45) USB 2 x USB 3.1 Gen1 2 x USB 2.0 1 x USB 3.1 Gen1 Type C OTG (Linux only, available upon request) Display 1 x VGA 1 x DP++ 1 x LVDS Internal I/O Serial 2 x RS-232/422/485 (2.0mm pitch) USB 2 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) Audio Speaker Out, Support 2 x 3W Speaker SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM2.0 (default) dTPM2.0 (opt.) Power Type Single 12V +/-10% DC Connector Right Angle Connector (4-pin) DC-in Jack (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption Typical: E3950:12V @ 0.6A (7.2Watt) Max.: E3950:12V @ 2A (24Watt) RTC Battery Lithium 3V (210mAH) OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise (64-bit) Ubuntu 16.04 Environment Temperature Operating: 0 to 60°C (Option: -20 to 70°C / -40 to 85 °C) Storage: -40 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF 467,547 hrs @ 25°C; 277,970 hrs @ 45°C ; 179,655 hrs @ 60°C Mechanism Dimensions 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02") Height PCB: 1.6mm Top Side: 15.5mm Bottom Side: 15.5mm Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 AL551 board 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-205G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 Heat sink (Height: 25mm) N series CPU A71-008119-000G, E series CPU A71-010038-000G
