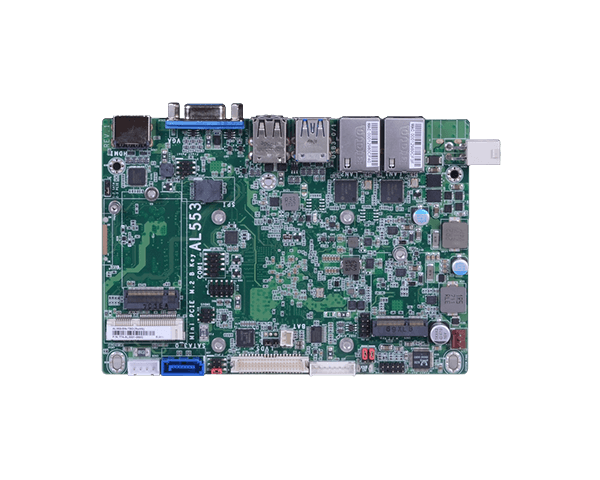

Intel Atom® E3900 3.5" SBC 1 DDR3L SODIMM up to 8GB Three independent displays: VGA + LVDS + HDMI Multiple expansion: 1 M.2 B Key, 1 M.2 E Key, Mini PCIe Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 4 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory Insyde SPI 128Mbit (supports UEFI boot only) One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz Graphics Controller Intel® HD Graphics Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4 Display 1 x VGA 1 x LVDS 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz Triple Displays VGA + LVDS + HDMI Expansion Interface 1 x Full-size mini-PCIe (USB/PCIe) with SIM slot (option) 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0) 1 x M.2 E key 2230 (USB/PCIe) Audio Audio Codec Realtek ALC262 Ethernet Controller 2 x Intel® I211AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request) Rear I/O Ethernet 2 x GbE (RJ-45) USB 2 x USB 3.1 Gen1 2 x USB 2.0 Display 1 x VGA 1 x HDMI 1 x LVDS Internal I/O Serial 1 x RS-232/422/485 (2.0mm pitch) USB 2 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM fTPM2.0 Power Type Wide Range 9~36V DC Connector Right Angle Connector (4-pin) DC-in Jack (available upon request) Vertical Type Connector (4-pin) (available upon request) Consumption Typical: 7W, Max : 24W. RTC Battery CR2032 Coin Cell OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise (64-bit) Ubuntu 16.04 Environment Temperature Operating: 0 to 60°C, -20 to 70°C, -40 to 85 °C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 618,325 hrs @ 25°C; 396,245 hrs @ 45°C ; 267,106 hrs @ 60°C Mechanism Dimensions 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02") Height PCB: 1.6mm Top Side: 15.5mm Bottom Side: 8.0mm Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 AL553 board COM port cable(Length: 250mm, 1x COM port) 332-753040-000G SATA data cable (Length : 500mm) 332-553001-205G SATA power cable (Length: 250mm) A81-004041-016G Heat sink(Height: 35mm) N series CPU A71-008119-000G/E series CPU A71-010038-010G
