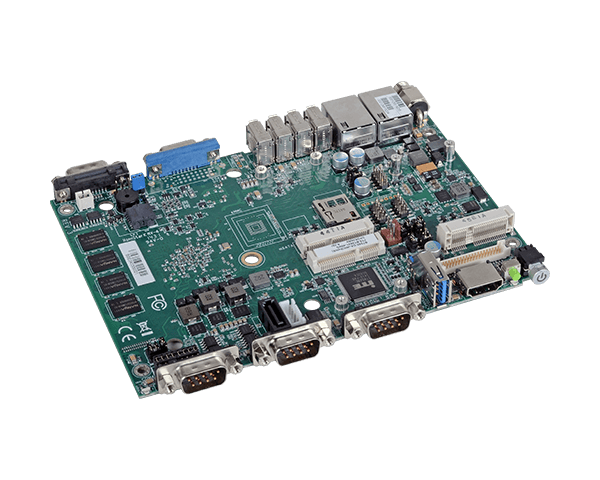

| BT253 | 산업용보드 > EATX | 0 |
|---|---|---|
|
Intel Atom® Processor E3800 4" SBC 2GB/4GB DDR3L ECC memory down 1 VGA, 1 LVDS, 1 HDMI Expansion: 3 Mini PCIe Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 5 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Memory 2GB/4GB DDR3L ECC memory down (-E45/-E25) 2GB/4GB DDR3L memory down (-J00/-N07) Single channel DDR3L 1333MHz (-E45/-J00/-N07) Single channel DDR3L 1066MHz (-E25) BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS) Display 1 x LVDS 1 x HDMI 1 x VGA LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz HDMI, DVI: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz Expansion Interface 3 x Mini PCIe 1 x SIM Audio Audio Codec Realtek ALC888 Ethernet Controller 2 x Intel® I210 PCIe (10/100/1000Mbps) Front I/O Serial 3 x RS232/422/485 (DP-9) USB 1 x USB 3.0 Display 1 x HDMI Rear I/O Ethernet 2 x GbE (RJ45) Serial 1 x RS232/422/485 (DP-9) USB 4 x USB 2.0 Display 1 x VGA Internal I/O Serial 2 x RS232 (2.0mm pitch) USB 1 x USB 2.0 Display 1 x LVDS Audio 1 x Mic-in SATA 1 x SATA 2.0 (up to 3Gb/s) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Wide Range 16~24V Connector DC-in Consumption BT253-C4-E45: 18.12W with E3845 at 1.91GHz and 4GB DDR3L ECC memory down OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Environment Temperature Operating : 0°C to 60°C - Atom, Celeron (Fanless) : 0°C to 85°C - Celeron (Fanless) : -20°C to 85°C - Atom (Fanless) Storage: -40°C to 85°C Humidity 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 4" board 165mm x 115mm (6.49" x 4.53") Packing List Packing List 1 BT253 board 1 Serial ATA data with power cable: A81-002008-000G 1 DVD 1 Heat spreader: A31-030022-200G
