| SU251/SU253 | 산업용보드 > EATX | 0 |
|---|---|---|
|

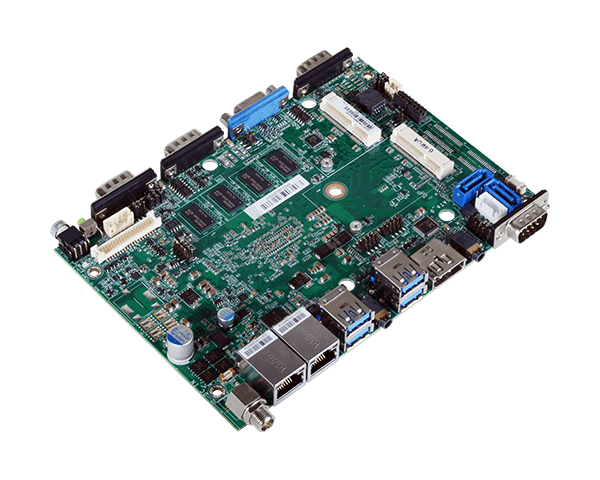

6th Gen Intel® Core™ 4" SBC Dual channel DDR4 2133MHz memory down up to 8GB Three independent displays: VGA + DP++*/HDMI + LVDS*/eDP DP++ resolution up to 4096x2304 @ 60Hz Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 2 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 6th Generation Intel® Core™ Processors, BGA 1356 (Skylake-U*) Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W Memory 4GB/8GB Memory Down Dual Channel DDR4 2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA 1 x DP++/HDMI (HDMI available upon request) 1 x LVDS/eDP (eDP available upon request) VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz Triple Displays VGA + DP++/HDMI (HDMI available upon request) + LVDS/eDP (eDP available upon request) Expansion Interface 1 x Full-size Mini PCIe (PCIe/USB, PCIe by default) (only Core i7/i5 supports full-size Mini PCIe) 1 x Half-size Mini PCIe (USB + PCIe/SATA, PCIe/SATA select by jumper setting, SATA by default) Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Front I/O Serial 2 x RS-232/422/485; 1 x RS-232( also supports an optional 8-bit DIO) Display 1 x VGA Buttons 1 x Power Button 1 x Reset Button Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232 USB 4 x USB 3.0 Display 1 x DP++/HDMI Audio Mic-in; Line-out Internal I/O Serial 2 x RS-232 (2.0mm pitch) USB 2 x USB 2.0 (2.0mm pitch) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power (Supports optional eDP connector) Audio 1 x Audio (Line-out/Mic-in) SATA 2 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power SMBus 1 x SMBus Other I/O 1 x Front Panel 1 x Chassis Intrusion 1 x Fan Connector Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type Single 12V +/-10% DC (SU251) Wide Range 15~36V (SU253) Connector 2-pin Terminal Block Consumption SU251 Typical: 6600U:12V @ 0.45A (5.44Watt) Max: 6600U:12V @ 3.14A (37.67Watt) SU253 Typical: 6600U:19V @ 0.46A (8.7Watt) Max: 6600U:19V @ 2.07A (39.29Watt) RTC Battery CR2032 Coin Cell OS Support OS Support Windows 7 (/WES7) (32/64-bit) Windows 8.1 (64-bit) Windows 10 IoT Enterprise (64-bit) Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF SU251 : 369,377 hrs @ 25°C; 205,103 hrs @ 45°C ; 123,607 hrs @ 60°C SU253 : 359,921 hrs @ 25°C; 199,960 hrs @ 45°C ; 120,832 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions 4" SBC Form Factor 165mm (6.49") x 115mm (4.53") Height PCB: 1.6mm Top Side: TBD Bottom Side: TBD Packing List Packing List 1 SU251/SU253 board 1 COM port cable (Length: 250mm, 1 x COM ports) A81-017001-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 Audio cable (Length: 160mm) 332-953053-004G 1 Front panel cable (Length: 100mm) A81-009097-001G 1 DVD 1 Heat sink (Height: TBD) TBD
