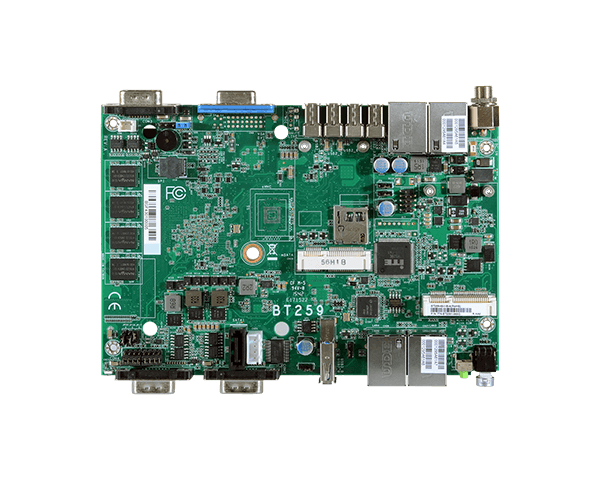

| BT259 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr ? Intel Atom® Processor E3800 4" SBC 2GB/4GB DDR3L memory down 1 VGA or 1 DVI-I (option) Expansion: 2 Mini PCIe Rich I/O: 4 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0 15-Year CPU Life Cycle Support ? System Processor Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W BGA 1170 packaging technology 22nm process technology Memory 4GB Memory onboard (E3845) Single Channel DDR3L 1333MHz 2GB Memory onboard (J1900) Single Channel DDR3L 1066MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics 4600 Display 1 VGA/ 1 DVI-I (available upon request) DVI: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz Expansion Interface 2 x Full-size Mini PCIe ( PCIe, USB, and 3G signals for 3G or GPRS module) Ethernet Controller 4 x Intel® I210 PCI Express (10/100/1000Mbps) LED Indicators 1 x status LED 1 x HDD LED Front I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS232/422/485 USB 1 x USB 3.0 (Type A) DIO 1 x 8-bit DIO Buttons 1 x reset button 1 x power button Rear I/O Ethernet 2 x GbE (RJ45) Serial 1 x RS232/422/485 USB 4 x USB 2.0 Display 1 VGA/ 1 DVI-I (available upon request) Internal I/O USB 2 x USB 2.0 SATA 1 x SATA 2.0 1 x SATA Power DIO 1 x 8-bit DIO Watchdog Timer Output & Interval Watchdog timeout programmable via software from 1 to 255 seconds Security TPM Available Upon Request Power Type 1 16~24V Connector DC-in jack Consumption BT259-45-I-B-4: 21.8W with E3845 at 1.91GHz and 4GB DDR3L memory down OS Support OS Support Windows 7, WES 7, Windows 8.1, WES 8 Ubuntu 14.04LTS Note: Windows 10 will be available upon request. Please contact DFI for more information. Environment Temperature Operating: 0°C~60°C Storage: -20°C~85°C Humidity Operating: 5% to 90% RH Storage: 5 to 90% RH Mechanism Dimensions 4" board 165mm (6.49") x 115mm (4.53") Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 BT259 board 1 Serial ATA data with power cable: A81-002008-000G 1 Heat spreader: A31-030022-200G
