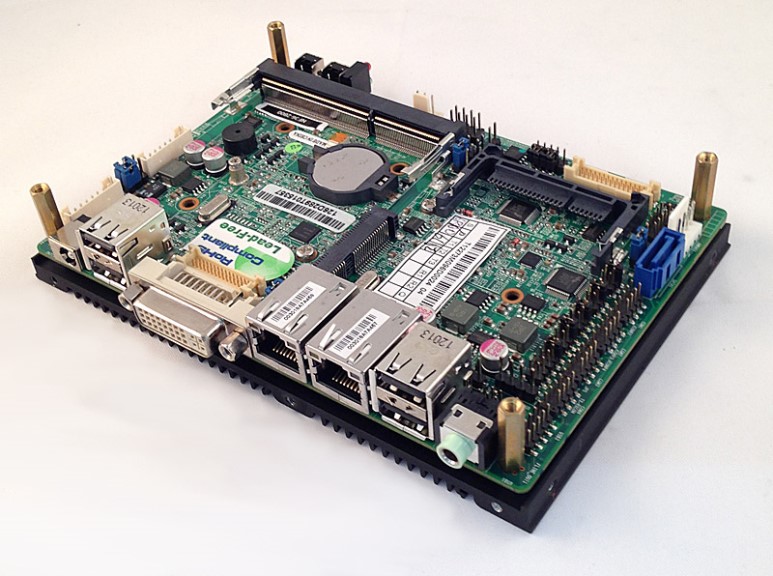

Jetway NF36 3.5" SBC Motherboard

Processor

3rd Generation Intel¢ç Atom Dual Core N2600 (1.6GHz@3.5W)

3rd Generation Intel¢ç Atom Dual Core N2800 (1.86GHz@6.5W)

3rd Generation Intel¢ç Atom Dual Core D2550 (1.86GHz@10W)

Chipset

Intel NM10

Memory

1 x 204-pin DDR3-800 SO-DIMM Single Channel up to 2 GB (N2600)

1 x 204-pin DDR3-800/1066 SO-DIMM Single Channel up to 4 GB (N2800)

Graphics

PowerVR SGX 545 (GMA 3600@400MHz) Integrated Graphic (N2600)

PowerVR SGX 545 (GMA 3650@640MHz) Integrated Graphic (N2800)

Audio

Realtek ALC662 HD Audio codec

LAN

2 x Realtek RTL8111EVL PCI-E Gigabit Ethernet

Storage

1 x SATA2 3Gb/s Connector

1 x CFast Socket

Super IO

FINTEK F71808A

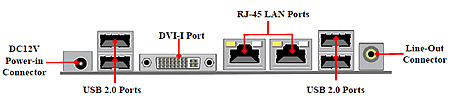

Back Panel Connectors

1 12V DC Jack

1 DVI-I

4 USB 2.0

2 RJ45 LAN (10/100/1000)

1 3.5mm Audio connector (Line-OUT)

Onboard I/O Connectors

1 SATA2 3Gb/s Connector

1 CFast Socket

1 mini PCI Express x1 Slot (full-size)

3 Serial RS232 COM header

1 Serial RS232/RS422/485 COM header (12V/5V selectable)

2 USB Pin Headers for up to 3 additional USB 2.0 Ports

1 24-bit dual channel LVDS connector/inverter (CHRONTEL CH7511B chipset up to 1920 x 1200)

1 18-bit single channel LVDS connector/inverter (PowerVR SGX 545 chipset)

1 8 bit GPIO Header

1 CIR Header

1 9-pin Audio Connector

1 Front Reset/Power buttons

1 Fan Header

1 4-pin Floppy Power Output (Male)

Power Supply for NF36

External Power Supply ? the board can be powered with a 12 V external power supply though a DC connector on the back panel. The rear 12 VDC jack accepts plugs with an inner diameter (ID) of 2.5 mm and an outer diameter (OD) of 5.5 mm, where the inner contact is 12 V and the shell is GND.
