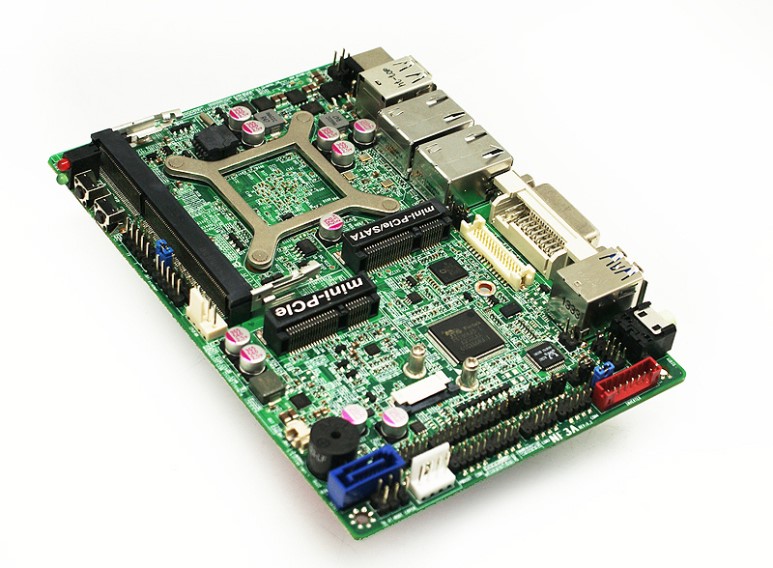

Jetway NF3A 3.5" SBC Motherboard

Processor

Intel¢ç Celeron N2930 SoC, 1.83GHz ? 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP

Intel¢ç Celeron N2807 SoC, 1.58GHz ? 2.16GHz Burst, Dual-Core, 1MB, 4.5W TDP/3.0W SDP

Intel¢ç Atom E3827 SoC, 1.75GHz, Dual-Core, 8W TDP, with AES-NI support

Memory

1 x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)

Graphics

Intel HD Graphics, 313MHz - 854MHz

Audio

Realtek ALC662 HD Audio codec

LAN

2 x Realtek RTL8111G Gigabit LAN with Enhanced Surge Protection

Storage

1 x SATA2 3Gb/s Connector

1 x Shared mSATA/mini-PCI Express Combo slot (Full-size)

Super IO

FINTEK F81866A

Back Panel Connectors

1 +9V ~ +24V DC-in Jack

1 DVI-I

1 USB 3.0

3 USB 2.0

2 RJ45 LAN (10/100/1000)

1 3.5mm Audio connector (Line-OUT)

Onboard I/O Connectors

1 SATA2 3Gb/s Connector

1 Shared mSATA/mini-PCI Express Combo slot (full-size)

1 Mini-PCI Express slot (half-size)

4 Serial port headers (3 * RS232, 1 * RS232/422/485)

2 USB Pin Headers for up to 4 additional USB 2.0 Ports

1 24-bit dual channel LVDS connector/inverter (CHRONTEL CH7511B chipset up to 1920 x 1200)

1 8 bit GPIO Header

1 AT/ATX Mode jumper

1 PS/2 Mouse/Keyboard header

1 Chassis Intrusion header

2 2-pin LAN LED header

1 2-pin SPDIF header

1 4-pin SMBUS header

1 9-pin Audio Connector

1 Front Reset/Power buttons

1 4-pin Fan Header

1 4-pin Floppy Power Output (Male)

Power Supply for NF3A

External Power Supply ? the board can be powered with a +9V ~ +24V +-3% external power supply though a DC connector on the back panel. The rear +9V ~ +24V DC jack accepts plugs with an inner diameter (ID) of 2.5 mm and an outer diameter (OD) of 5.5 mm, where the inner contact is +9V ~ +24V and the shell is GND.

Market Segments Supported

¡î Digital Security & Surveillance

¡î Digital Signage

¡î Gaming

¡î Industrial Automation/Control

¡î Medical

¡î Retail (POS/Kiosk/ATM)

¡î Networking/Storage Server/Mail Server/Print Server

¡î Thin Client

¡î HTPC
