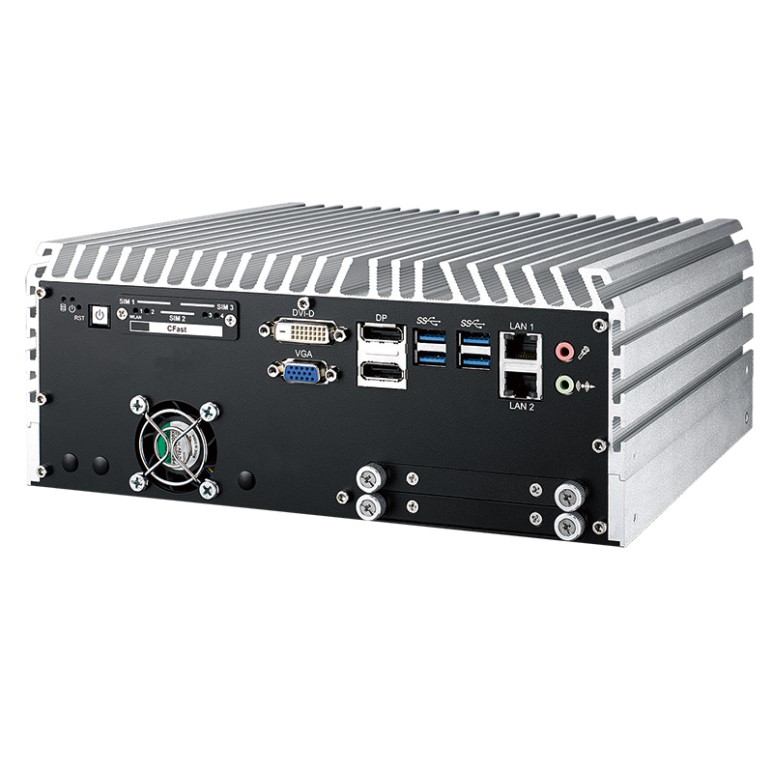

ECS-9780 GTX1050 (8 PoE)

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

Workstation-grade Intel® Xeon®/Core™ i7 Processor (Skylake-H) with CM236 Chipset supports up to 6 independent displays

NVIDIA GeForce® GTX 10 Series graphics engine supports NVIDIA Pascal™ GPU architecture, up to 8K resolution

Multiple VGA, DVI, DisplayPort and HDMI display interfaces, up to 6 independent HD displays

2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)

10-port Independent GigE LAN with 4 IEEE 802.3at PoE+ & 4 IEEE 802.3af PoE, iAMT 11.0 supported

4 SIM Card Socket for WiFi/3G/4G/LTE/GPRS/UMTS

2 Front-access 2.5" SSD Tray, 6 USB 3.0, 4 COM, 1 CFast Socket

32 Isolated DIO, 2 Mini PCIe/mSATA

10V to 36V DC power input with 80V Surge Protection

Configurable Ignition Power Control, Smart Battery Protection

Optional supports full function SUMIT A, B

Specifications

System
Processor	Intel® Xeon® E3-1505M v5/Core™ i7-6820EQ Processor (Skylake-H)
Chipset	Intel® CM236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 6 USB 3.0 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD, PoE, Wireless
SIM Card	4 SIM Card Socket (3 External, 1 Internal)
Expansion
Mini PCIe	2 Mini PCIe Socket : - 1 Full-size for PCIe/USB/External SIM Card/mSATA - 1 Full-size for PCIe/Internal SIM Card/mSATA
SUMIT A, B	2 SUMIT Slot (Optional)
Graphics
Graphics Processor	- Intel® HD Graphics P530/530 - NVIDIA GeForce® GTX 1050 Ti/GTX 1050
Interface	7 Display interfaces : - 2 DVI : Up to 1920 x 1200 @ 60Hz - 1 DisplayPort : Up to 7680 x 3840 @ 60Hz - 2 DisplayPort : Up to 4096 x 2304 @ 60Hz - 1 VGA : Up to 1920 x 1200 @ 60Hz - 1 HDMI : Up to 4096 x 2160 @ 60Hz
Storage
SATA	4 SATA III support S/W RAID 0, 1, 5, 10 : - 3 SATA III (6Gbps) - 1 SATA III co-lay with Mini PCIe (6Gbps)
mSATA	4 mSATA connections : - 3 SATA III (Mini PCIe Type, 6Gbps) - 1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219 GigE LAN supports iAMT 11.0
LAN 2	Intel® I210 GigE LAN
PoE+
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
PoE
LAN 7	GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
LAN 8	GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
LAN 9	GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
LAN 10	GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
Power
Power Input	10V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	260mm x 215mm x 104mm (10.2” x 8.5” x 4.1”)
Weight	4.7 kg (10.36 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional)
Environment
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 60°C
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC	E13, CE, FCC, EN50155, EN50121-3-2
