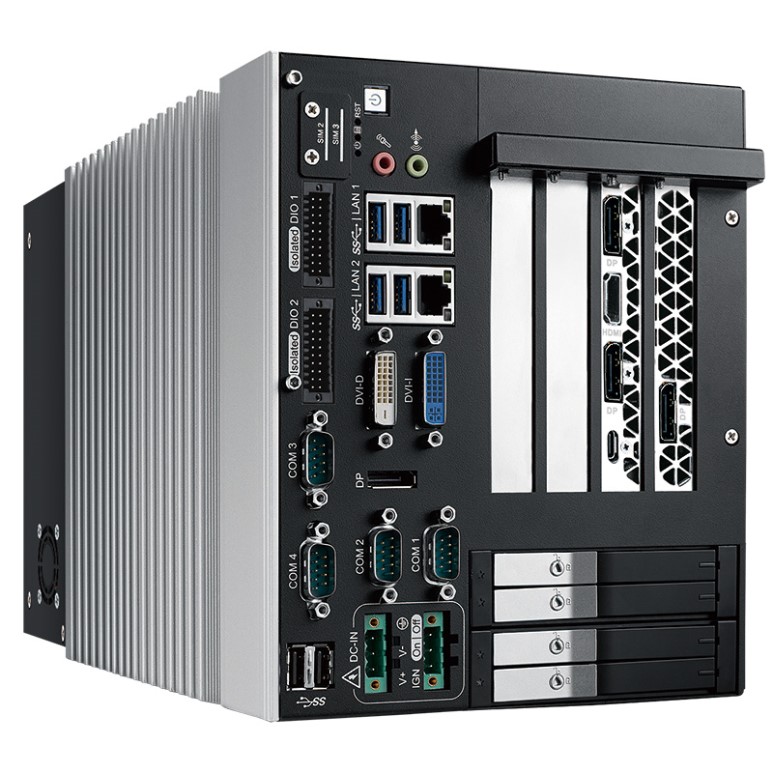

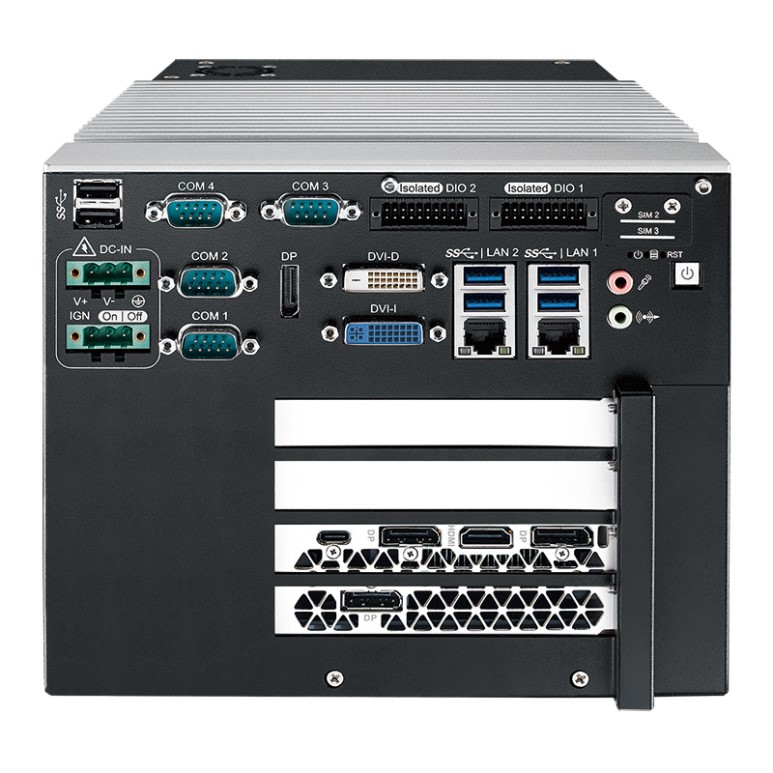

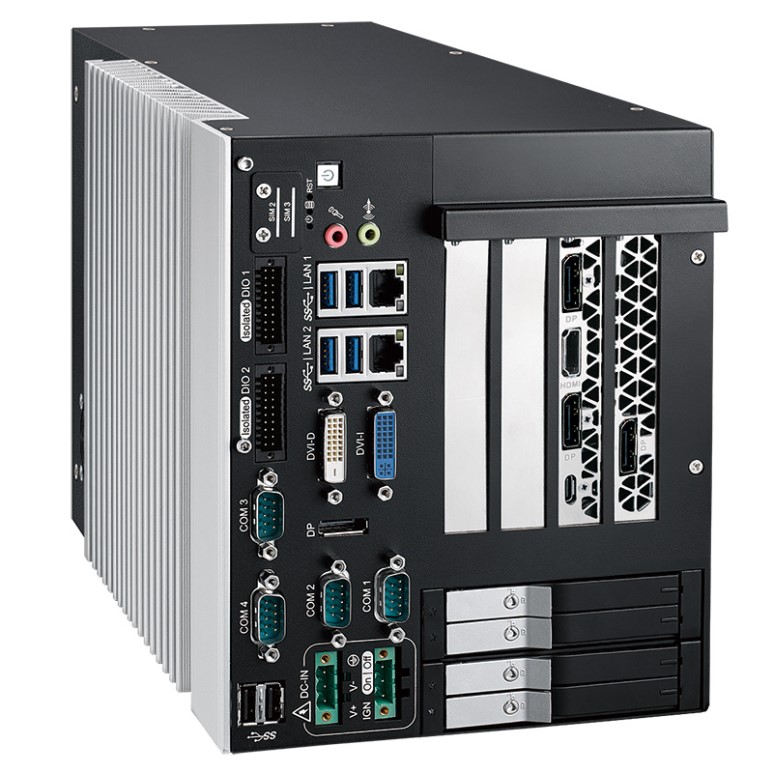

RCS-9400FR RTX2080

산업용보드 > 1U Rackmount

제품문의 02-3016-2464 http://www.wjubc.co.kr

Features

LGA 1151 Socket supports Intel® Xeon®/Core™ i7 Processor (Kaby Lake/Skylake) with workstation-grade Intel® C236 Chipset

Powered by advanced NVIDIA Turing™ GPU architecture and all-new RTX platform, NVIDIA® GeForce RTX™ series graphic engine, up to 6X the performance of previous

generation graphics cards for real-time AI computing

Display : 2 DVI, 1 HDMI and 4 DisplayPort, up to 7 independent HD displays

2 independent GigE LAN, iAMT 11.0 supported

3 SIM Card Socket for WiFi/3G/4G/LTE/GPRS/UMTS

4 Front-access 2.5" SSD/HDD Tray, 1 CFast Socket

7 USB 3.0, 32 Isolated DIO

2 PCI/PCIe Slot, 3 Mini PCIe, 4 COM RS-232/422/485

24V to 36V DC-in, 80V Surge Protection

Configurable Ignition Power Control

Specifications

System
Processor	Quad Core Intel® Xeon®/Core™ i7 Processor (Kaby Lake-S/Skylake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2400MHz SO-DIMM, up to 64GB
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 7 USB 3.0 (6 External, 1 Internal) - 2 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD
SIM Card	3 SIM Card Socket (2 External, 1 Internal)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/USB/External SIM Card - 1 Full-size for PCIe/USB/Internal SIM Card/mSATA
PCI/PCIe	Up to 2 PCIe/PCI Slot, by request
Graphics
Graphics Processor	- Intel® UHD graphics P630/630 - NVIDIA® GeForce RTX™ 2080
Interface	7 Display interfaces: - 2 DVI : Up to 1920 x 1200 @ 60Hz - 3 DisplayPort : Up to 7680 x 3840 @60Hz - 1 DisplayPort : Up to 4096 x 2304 @60Hz - 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA	4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket (Internal) -4 2.5" SSD/HDD Tray (External)
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	24V to 36V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16 Mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H)	172mm x 330mm x 210mm (6.8" x 13" x 8.3")
Weight	RCS-9400F RTX2080 : 4.4 kg (9.7 lb) RCS-9400FH RTX2080 : 5.1 kg (11.2 lb) RCS-9400FR RTX2080 : 5.6 kg (12.3 lb) RCS-9400FHR RTX2080 : 6.3 kg (13.9 lb)
Mounting	Wallmount by mounting bracket
Environment
Operating Temperature	-25°C to 45°C (-13°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 45°C
Shock/Vibration	- IEC 61373：2010 - Railway Applications：Rolling Stock Equipment, Shock and Vibration Test
EMC	CE, FCC, EN50155, EN50121-3-2
