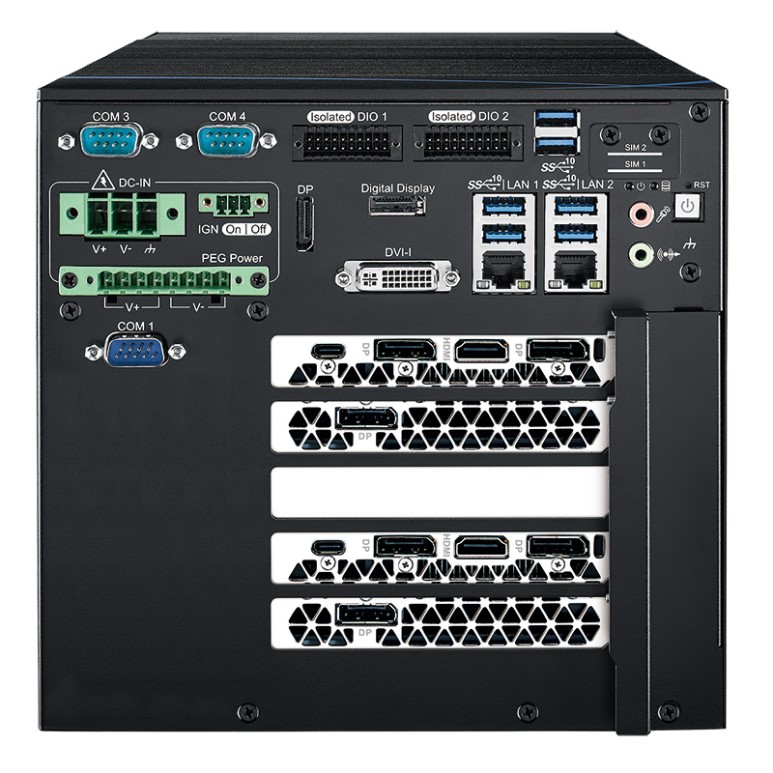

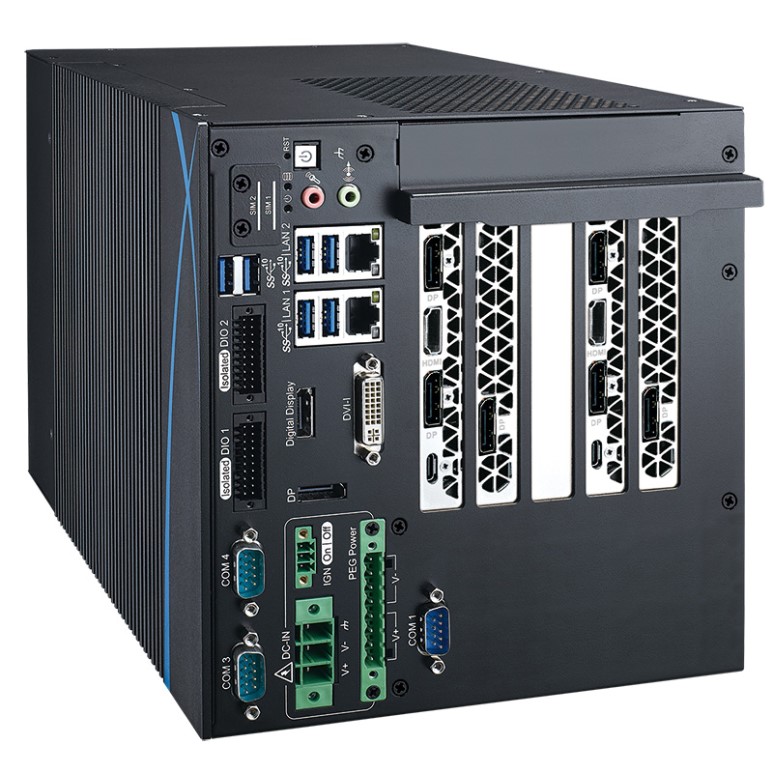

RCX-1500 RTX2080D

산업용보드 > 1U Rackmount

Features

6 cores 8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) processor with workstation-grade Intel® C246 Chipset

4 DDR4 2666MHz memory, up tp 128GB (ECC/Non-ECC)

6 external 10G USB 3.1 Gen 2, up to 10Gbps SuperSpeed data transfer

Powered by advanced NVIDIA Turing™ GPU architecture and all-new RTX platform, dual NVIDIA® GeForce RTX™ series graphics engine supports up to 6X the performance of previous generation graphics cards for real-time AI computing

displays: 1 DVI, 2 HDMI, and 8 DisplayPort, up to 8K resolution

2 independent GigE LAN support iAMT 12.0

2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS

32 Isolated DIO,3 COM RS-232/422/485

2 M.2 Socket: 1 M.2 Key M, 1 M.2 Key E

Support wide range power input with 80V Surge Protection

Configurable Ignition Power Control

Specifications

System
Processor	6 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake-S)
Chipset	Intel® C246 Chipset
BIOS	AMI
SIO	IT8786E
Memory	4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 6 USB 3.1 Gen 2 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD, Wireless
SIM Card	2 External SIM Socket
Expansion
Mini PCIe	2 Full-size for PCIe/USB/External SIM Card/mSATA
M.2	1 M.2 Key E Socket
Graphics
Graphics Processor	- Intel® UHD graphics P630/630 - Independent Graphics 1：NVIDIA® GeForce RTX™ 2080 Graphics - Independent Graphics 2：NVIDIA® GeForce RTX™ 2080 Graphics
Interface	11 independent displays : - 1 DVI : Up to 1920 x 1080 @60Hz - 6 DisplayPort : Up to 7680 x 3840 @60Hz - 1 DisplayPort : Up to 4096 x 2304 @60Hz - 1 Digital Display : Up to 4096 x 2304 @60Hz - 2 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA	4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA	2 SATA III (Mini PCIe type, 6Gbps)
Storage Device	- 4 Front-access 2.5" SSD/HDD Tray - 1 M.2 Key M Socket
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2	Intel® I210 GigE LAN
Power
Power Input	- 6V to 36V DC-in - 12V PEG Power
Power Interface	DC-in: 3-pin Terminal Block: V+, V-, Frame Ground PEG Power: 8-pin Terminal Block: 4V+, 4V-
Ignition Control	16 mode (Internal)
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Linux
Mechanical
Dimension (W x L x H)	330mm x 210mm x 198.2mm (12.99" x 8.27" x 7.80")
Weight	10.1 kg (22.26 lb)
Mounting	Wallmount by mounting bracket
Environment
Operating Temperature	-25°C to 45°C (-13°F to 113°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 45°C
Shock/Vibration	- IEC 61373 : 2010 - Railway Applications : Rolling Stock Equipment, Shock and Vibration Test
EMC	CE, FCC, EN50155, EN50121-3-2
